Component Inspection

Tire Pressure Monitoring
C1670 Auto Learning Failure - Inspection/Repair:_:Component Inspection

Component Inspection

1. Connect GDS and select "Diagnostic Trouble Codes(DTCs)" mode.
2. Using a GDS, Clear DTC.
3. IG OFF -> IG ON.
4. After driving at 25 km/h for approx. 10 - 20 minutes, check if there is a DTC happened.

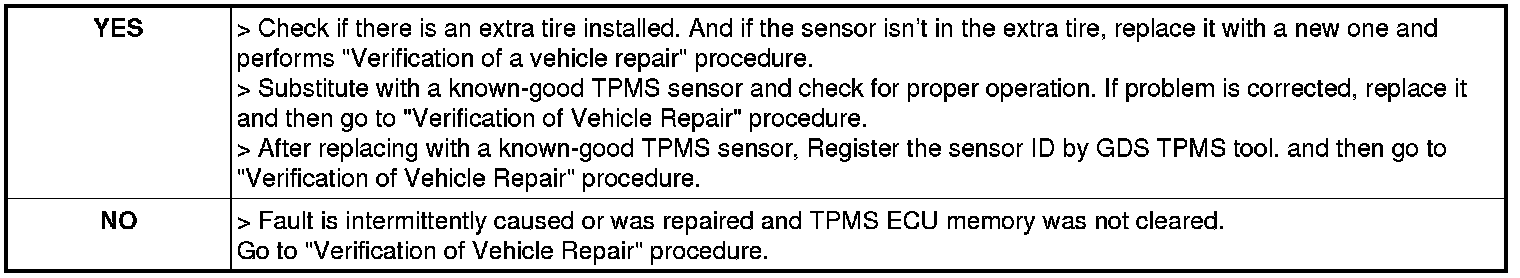

5. Are any DTCs present ?
