Scantool Diagnostics

Tire Pressure Monitoring
C1660 Receiver Radio Frequency Circuit Failure - Scantool Diagnostics

Monitor GDS Data

1. Park the vehicle on an even ground.
2. Connect GDS to Data Link Connector(DLC).
3. IG "ON"

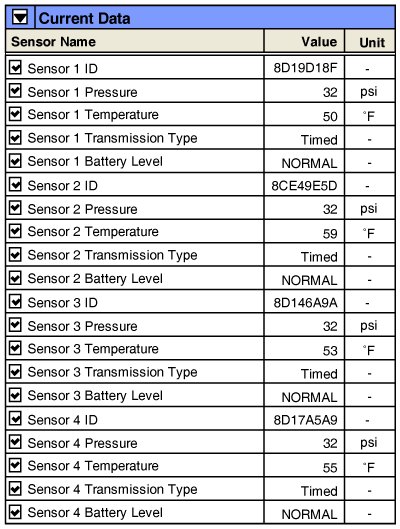

4. Monitor the service data of each TPMS sensor on the GDS.

Specification :The service data of each TPMS sensor can be normally shown on the GDS.

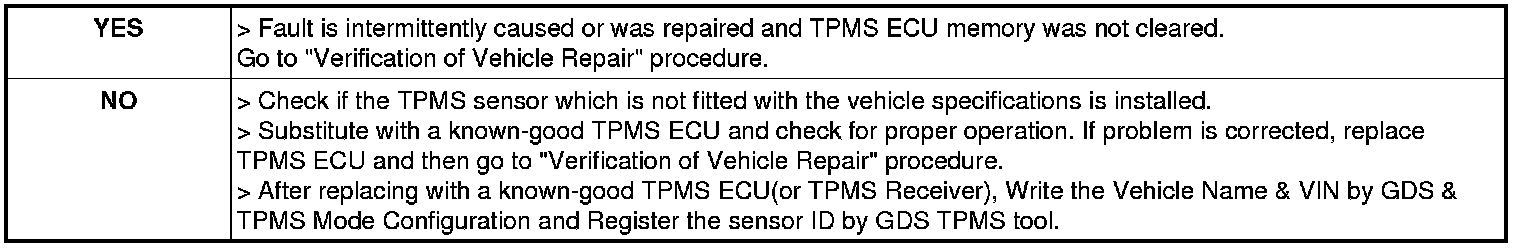

5. Is the service data shown normally?
