General Information

Tire Pressure Monitoring
C1616 CAN Bus Off - General Information

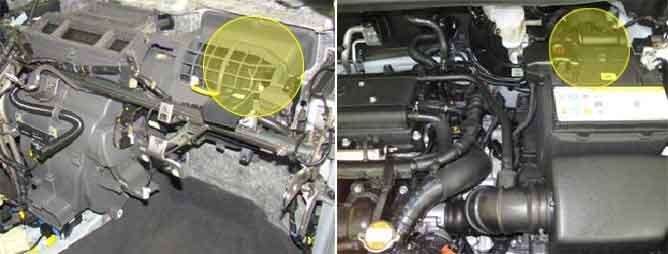

Component Location





General Description

CAN communication consists of CAN low line, CAN high line and two resister. The resister are installed in Cluster and PCM. The CAN system allow communication between control module(PCM, MDPS, FATC, ABS)

DTC Description

DTC C1616 is set when TPMS ECU detects CAN communication error.

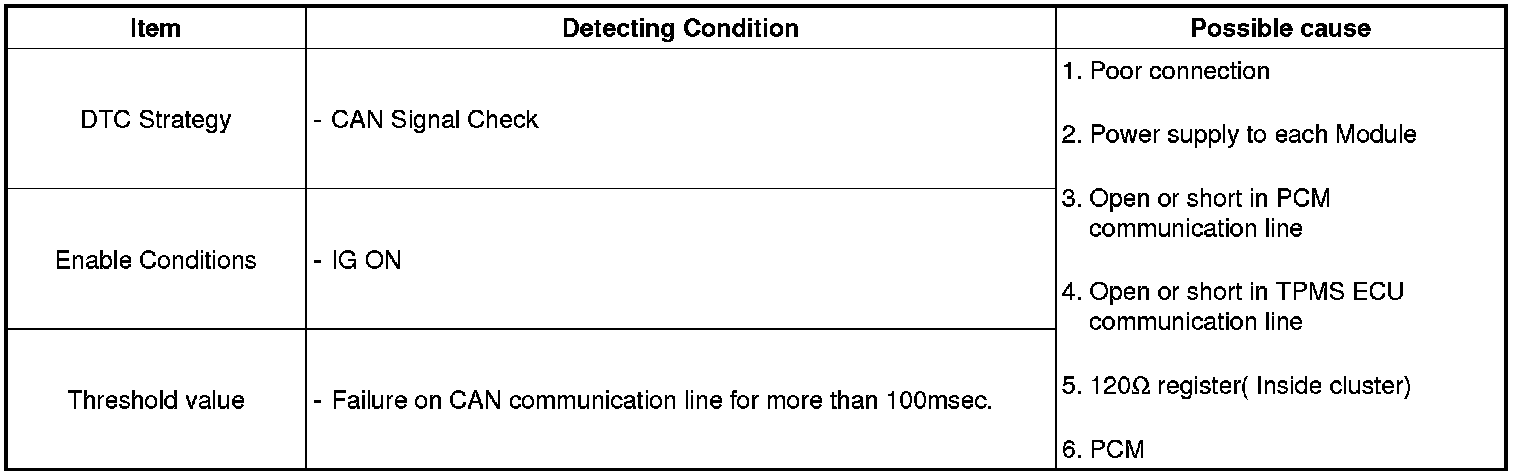

DTC Detecting Condition

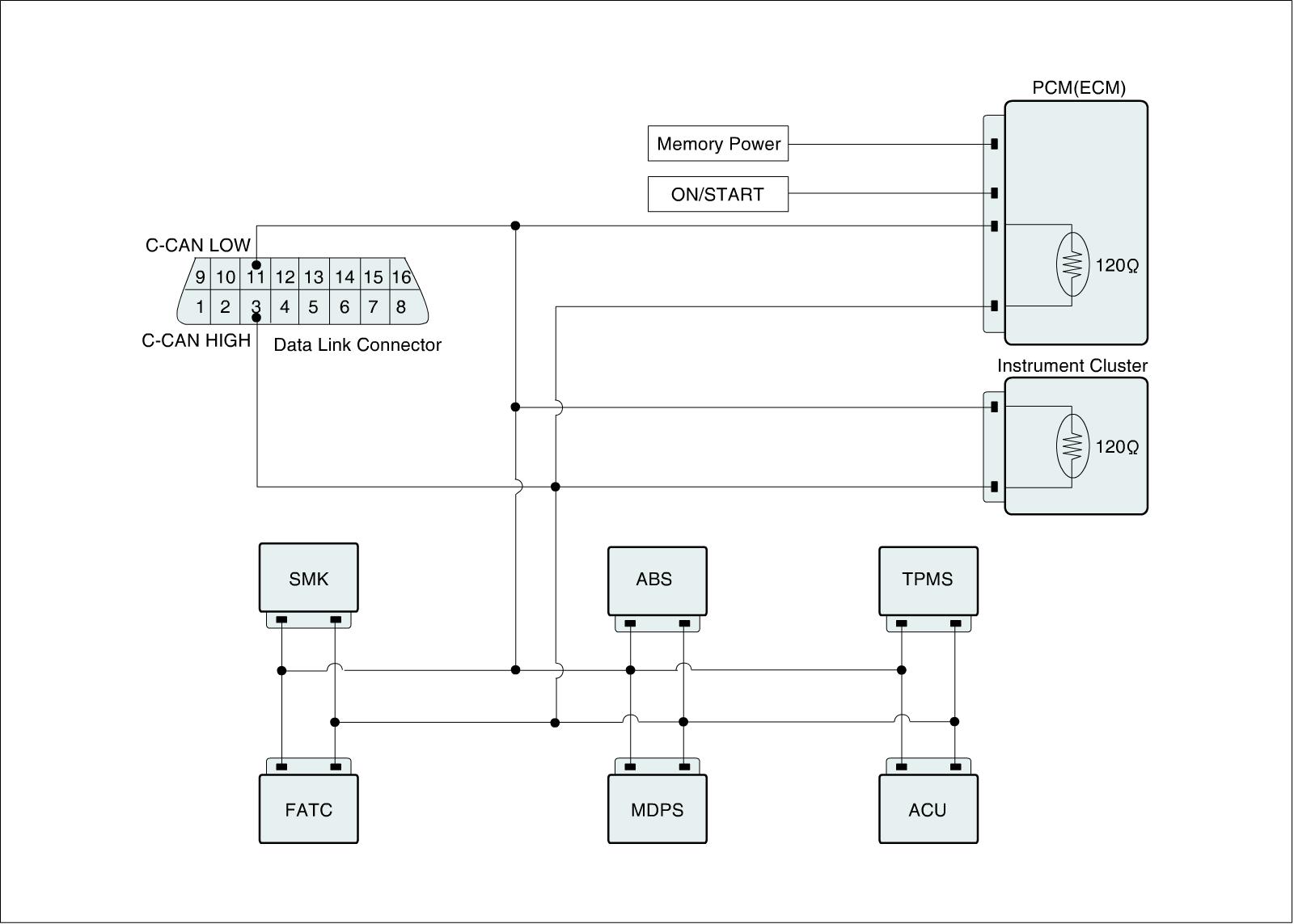

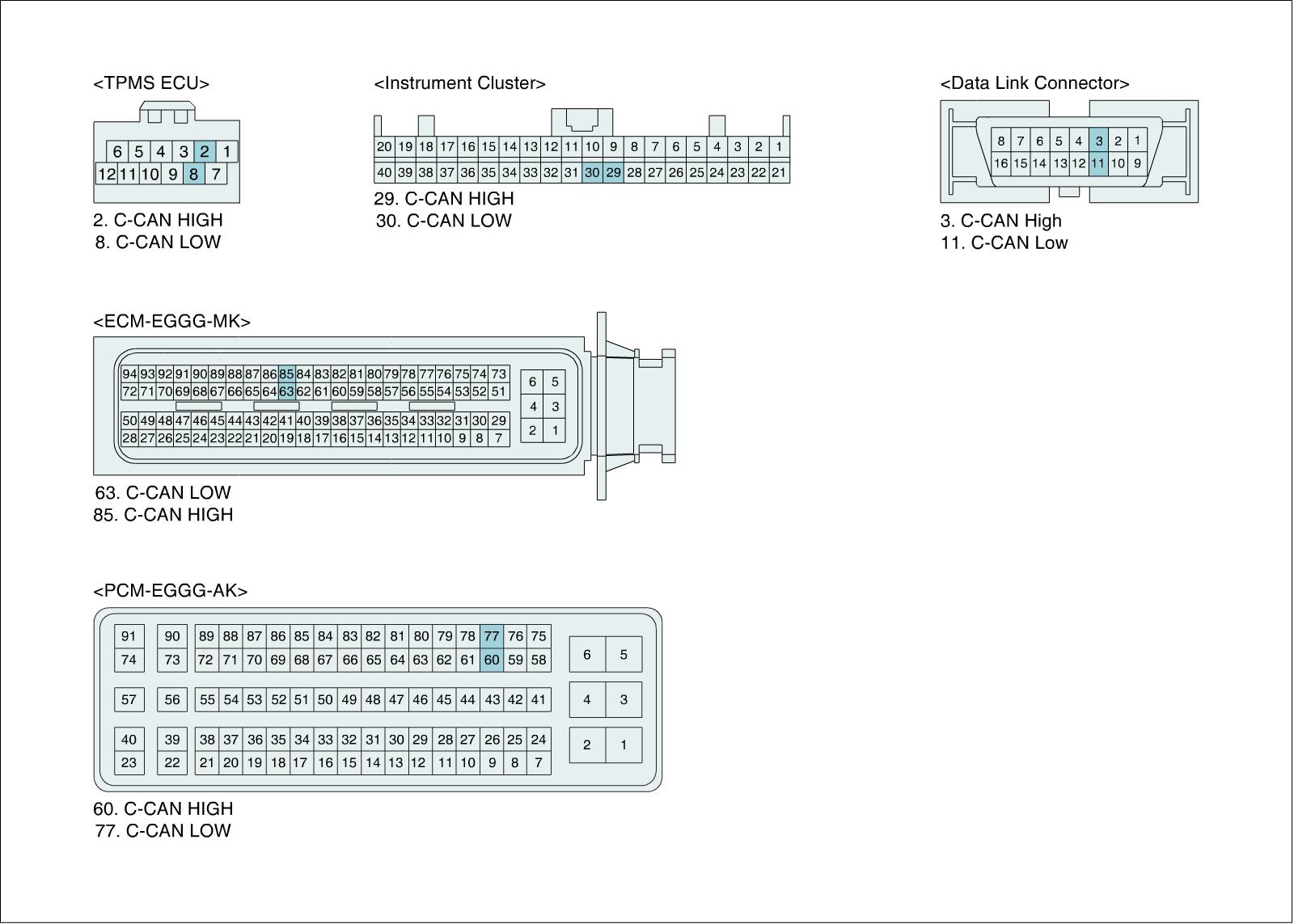

Diagnostic Circuit Diagram

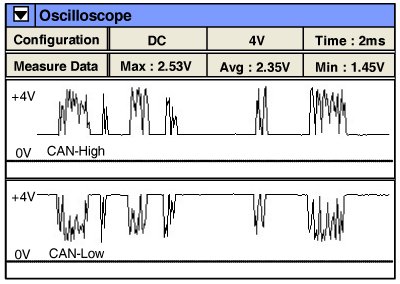

Signal Waveform & Data
