Motor driven Power Steering
C1616 CAN Bus Off - General Information

Component Location





General Description

CAN communication is circuit, consists of CAN low line, CAN high line and two resister, installed in Cluster and PCM, to communicate with each control module(PCM, EPS, ABS/ ESC).

DTC Description

EPS CM sets this code If EPS doesn't transmit or receive a message normally.

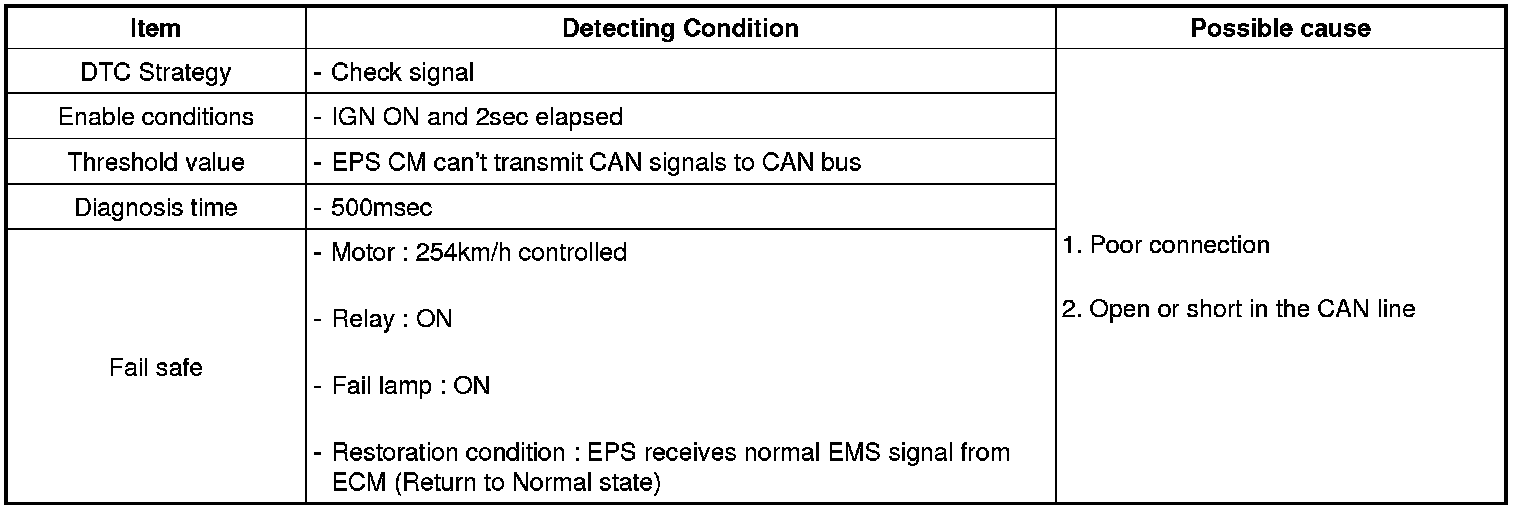

DTC Detecting Condition

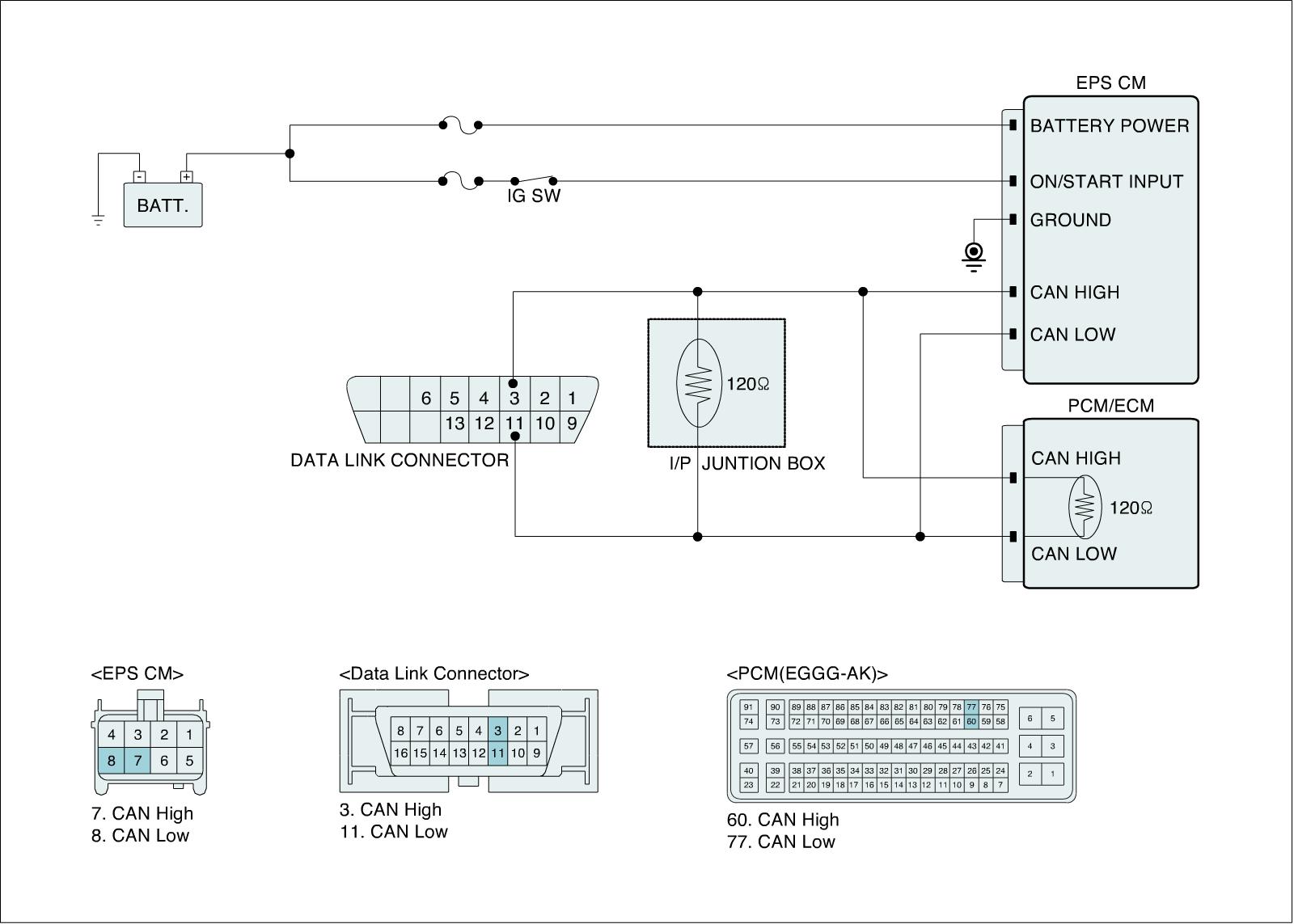

Diagnostic Circuit Diagram
