Scantool Diagnostics

Motor driven Power Steering
C1603 Sensor CAN Hardware Error - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Check DTCs detected on scantool.
3. After clearing DTC C1603, wait for about 20 - 30 minutes with not steering.
** Even though DTC C1603 is eliminated, it takes about 20 - 30 minutes that a steering force gets back to normal.

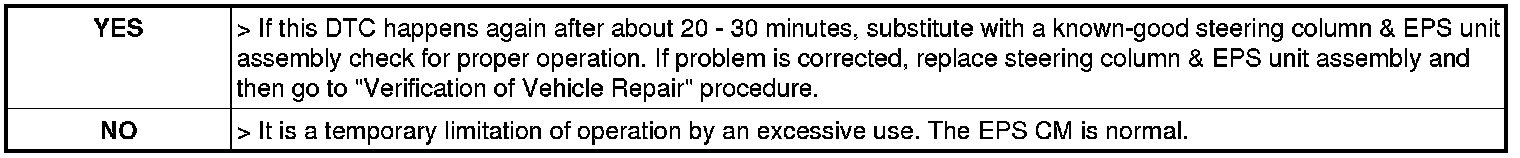

4. Is the current DTC detected again?
