General Information

Motor driven Power Steering
C1261 Steering Angle Sensor Not Calibrated - General Information

Component Location





General Description

EPS (MDPS=Motor Driving Power Steering) is designed to provide directional control and smooth feeling to driver when driver operates steering wheel. There is a function to detect rotation speed and direction of steering wheel in Torque Sensor. Rotation

DTC Description

EPS (MDPS=Motor Driving Power Steering) CM sets this code if ASP(Absolute Steering Position) zero setting is not done when EPS CM losses steering angle signal due to EPS alinment replace etc.

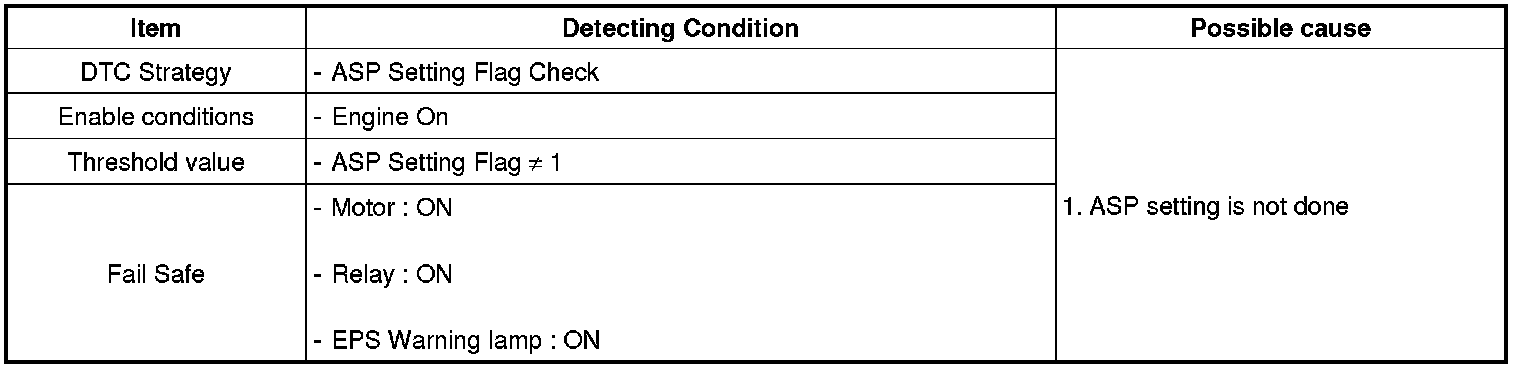

DTC Detecting Condition
