General Information

Motor driven Power Steering
C1259 Steering Angle Sensor - Electrical Malfunction - General Information

Component Location





General Description

EPS (MDPS=Motor Driving Power Steering) is designed to provide directional control and smooth feeling to driver when driver operates steering wheel. There is a function to detect rotation speed and direction of steering wheel in Torque Sensor. Rotation

DTC Description

If there is an error in steering signals, the EPS (MDPS=Motor Driving Power Steering) unit sets DTC C1259.

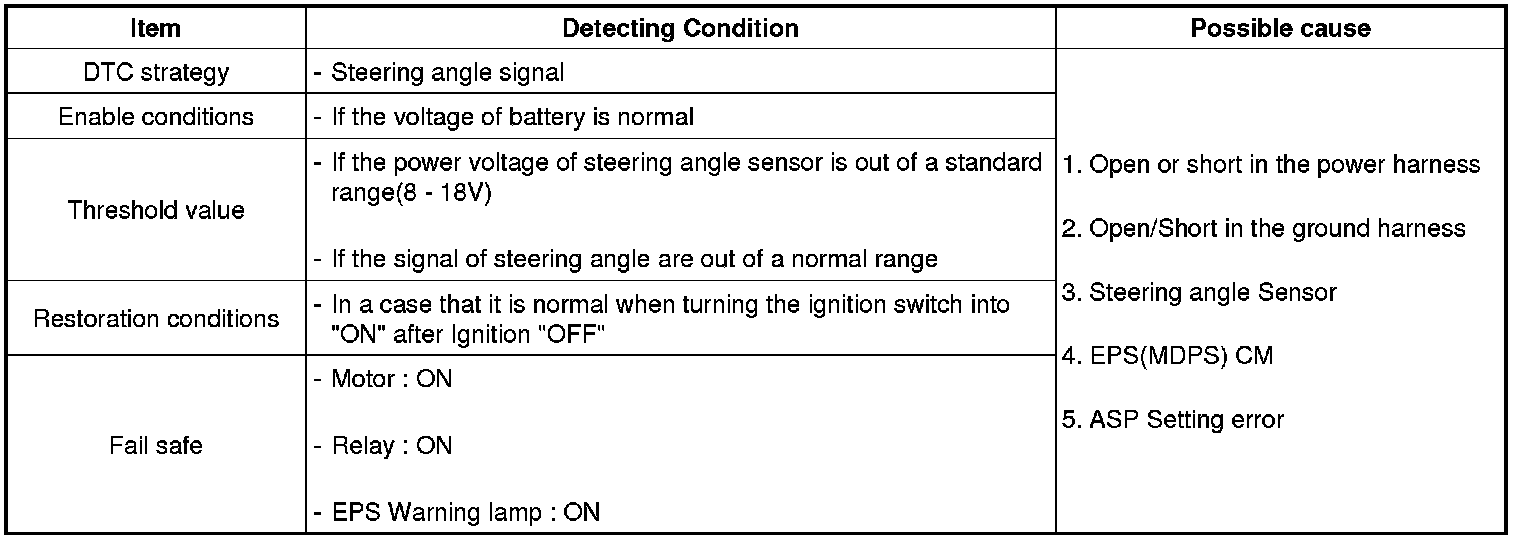

DTC Detecting Condition
