C1259 Steering Angle Sensor - Electrical Malfunction - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. IG "ON", ENG "ON".
3. Turn the steering wheel to the left or right.
4. Monitor the "STEERING Sensor" parameters on the GDS.

Specification :If the parameters are changed according to wheel position during steering the wheel, it is normal condition.

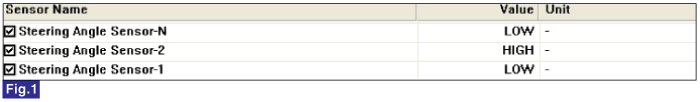

Fig.1) Test Condition : Ignition "ON" & Engine "ON". Normal Data

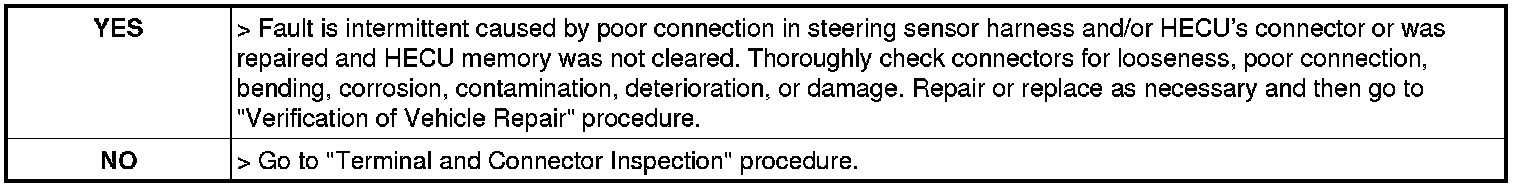

5. Whenever steering wheel is turned, is the steering sensor's scantool data changed ?
