Scantool Diagnostics

Tire Pressure Monitoring
C1212 First Speed Input Fault - Scantool Diagnostics

GDS Diagnosis

1. Connect GDS with diagnostic connector.
2. Check that there is DTC on the ESC side.
3. If there is the DTC related to a wheel speed sensor, Check and repair it at first.
4. If there is DTC C1616 related to CAN communication, check and repair it at first.

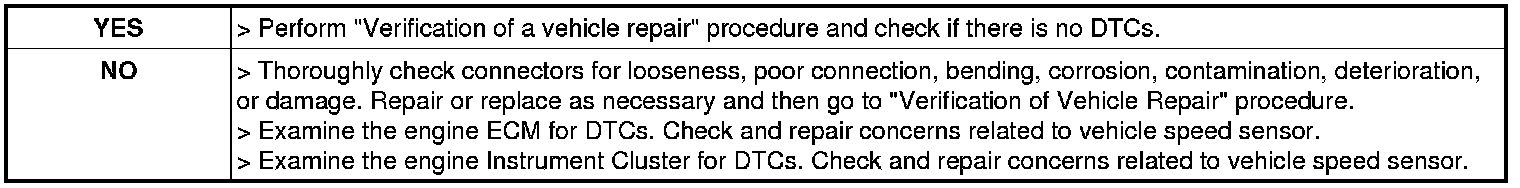

5. After repairing a wheel speed sensor/ C1616, is DTC C1212 erased?
