C1123 Sensor 3 Battery Voltage Low - Scantool Diagnostics

Monitor GDS Data

1. Set up 'GDS' with 'GDS TPMS'.
2. Select "Vehicle S/W Management" function.
3. Select the "Sensor Status" mode of "Data Treatment" item.
4. Postion the GDS TPMS as near as possible to the tire.
(Reading may take 30 - 60 seconds depending on the sensor's characteristics. )
5. Monitor the parameter of "Battery Level" on the screen.

Specification:The value of Sensor 3 battery is 'OK'.




Fig.1) Data displayed by TPMS Exciter

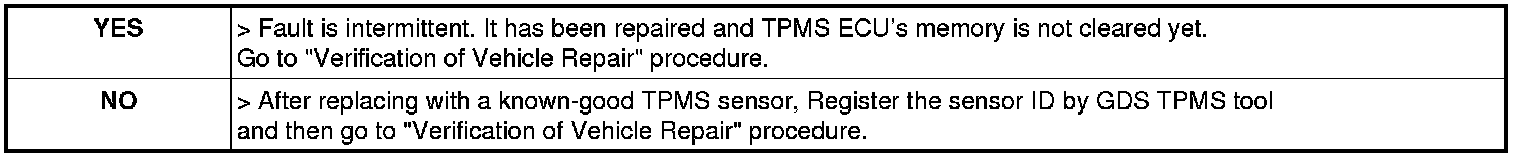

6. Is the sensor battery OK?
