Scantool Diagnostics

Motor driven Power Steering
C1112 Sensor Source Voltage - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC) and start engine.
2. Monitor the "STEERING WHEEL TORQUE" parameter on the scantool.
3. Operate the steering wheel to the left and right.

Specification :Approx. 9.0 Nm ~ - 9.0 Nm ( "­-­"means Turning steering wheel to left.)




Fig.1) Sensor output at turn a handle left during idle

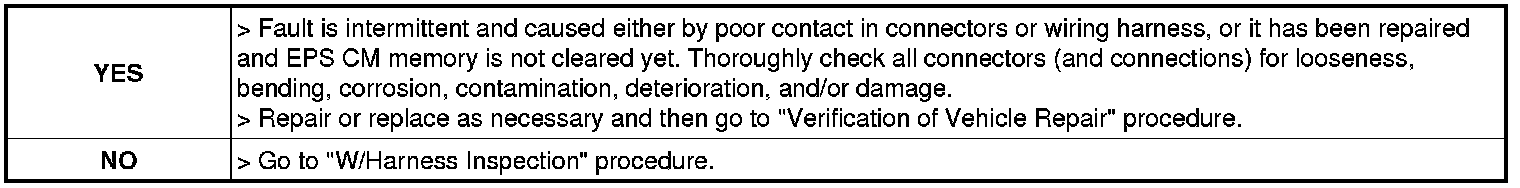

4. Is parameter within specifications?
