Scantool Diagnostics

Motor driven Power Steering
C1101 Battery Voltage High - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Start engine and turn the headight and the heatwire on.
3. Monitor the "SUPPLY VOLTAGE" parameter on the scantool.
4. Maintaining ENGINE at 2,500 RPM (idle) over 2 minutes.

Specification :Approx. 12.5V~14.5V




Fig.1) Normal current data

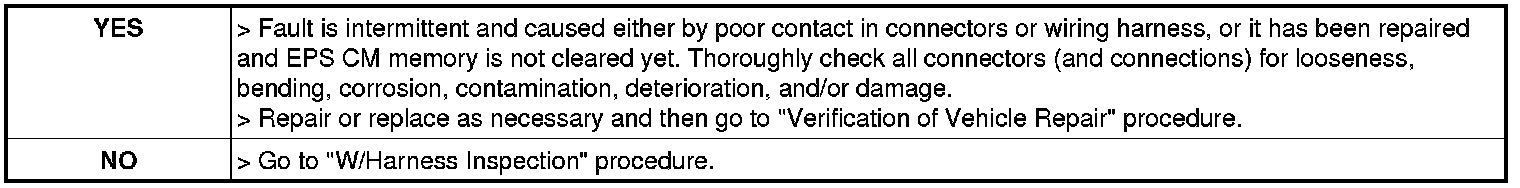

5. Is parameter within specifications?
