General Information

Airbag(Event #1)
B250200 Passenger Airbag Telltale Lamp Failure - General Information

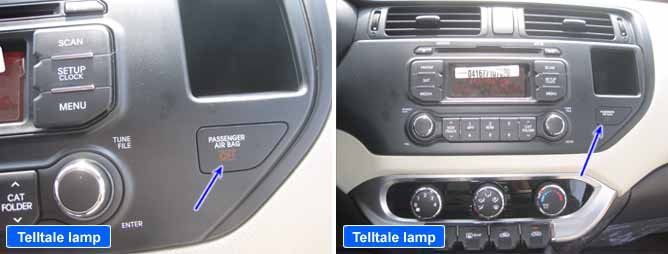

Component Location





General Description

The SRS Telltale Lamp is located on the center of crash pad.
When the passenger sest are unoccupied, the Telltale Lamp lights up for the notice, and if passenger are occupied under seat,Telltale Lamp are goes off automatically.

DTC Description

DTC B250200 is recorded when occurrence of a malfunction in the Telltale indicator Lamp system.

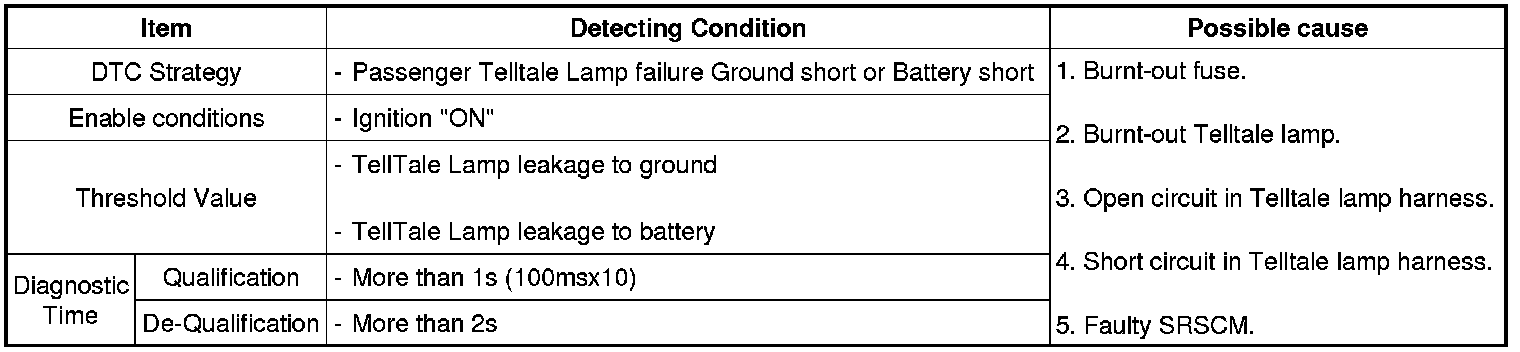

DTC Detecting Condition

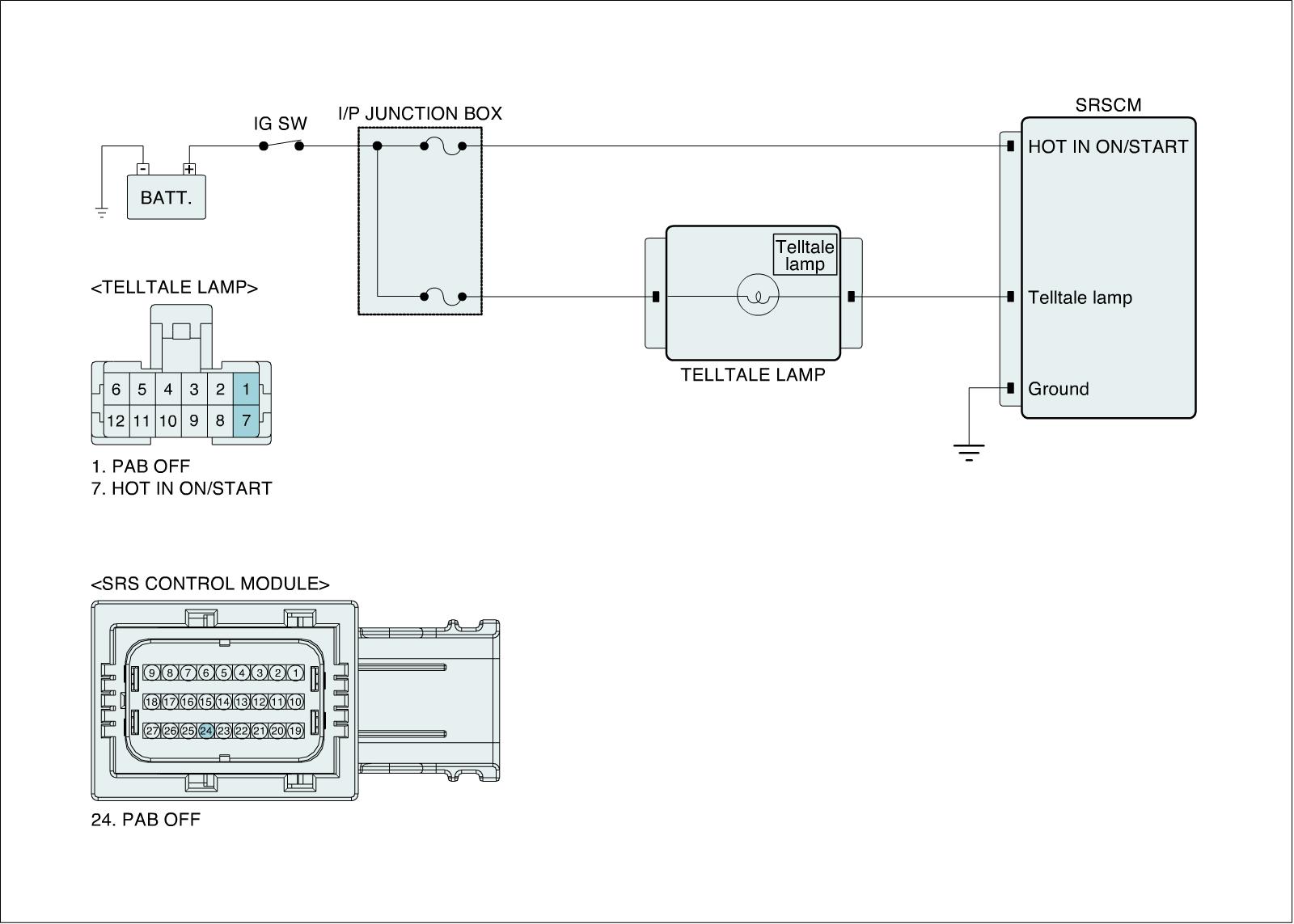

Diagnostic Circuit Diagram
