W/Harness Inspection

Airbag(Event #1)
B250000 Warning lamp Failure - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check shorting connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

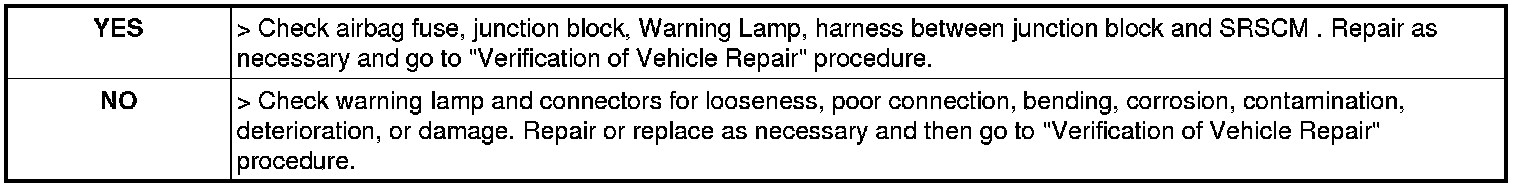

3. Has a problem been found?






Main harness Circuit Inspection

1. Ignition "OFF".
2. Disconnect the battery (-) terminal cable from the battery and wait at least one minutes.
3. Disconnect SRSCM main harness connector.
4. Connect the battery (-) terminal cable to the battery and Ignition "ON" & Engine "OFF".
5. After connect GDS, select "Oscilloscope" mode.

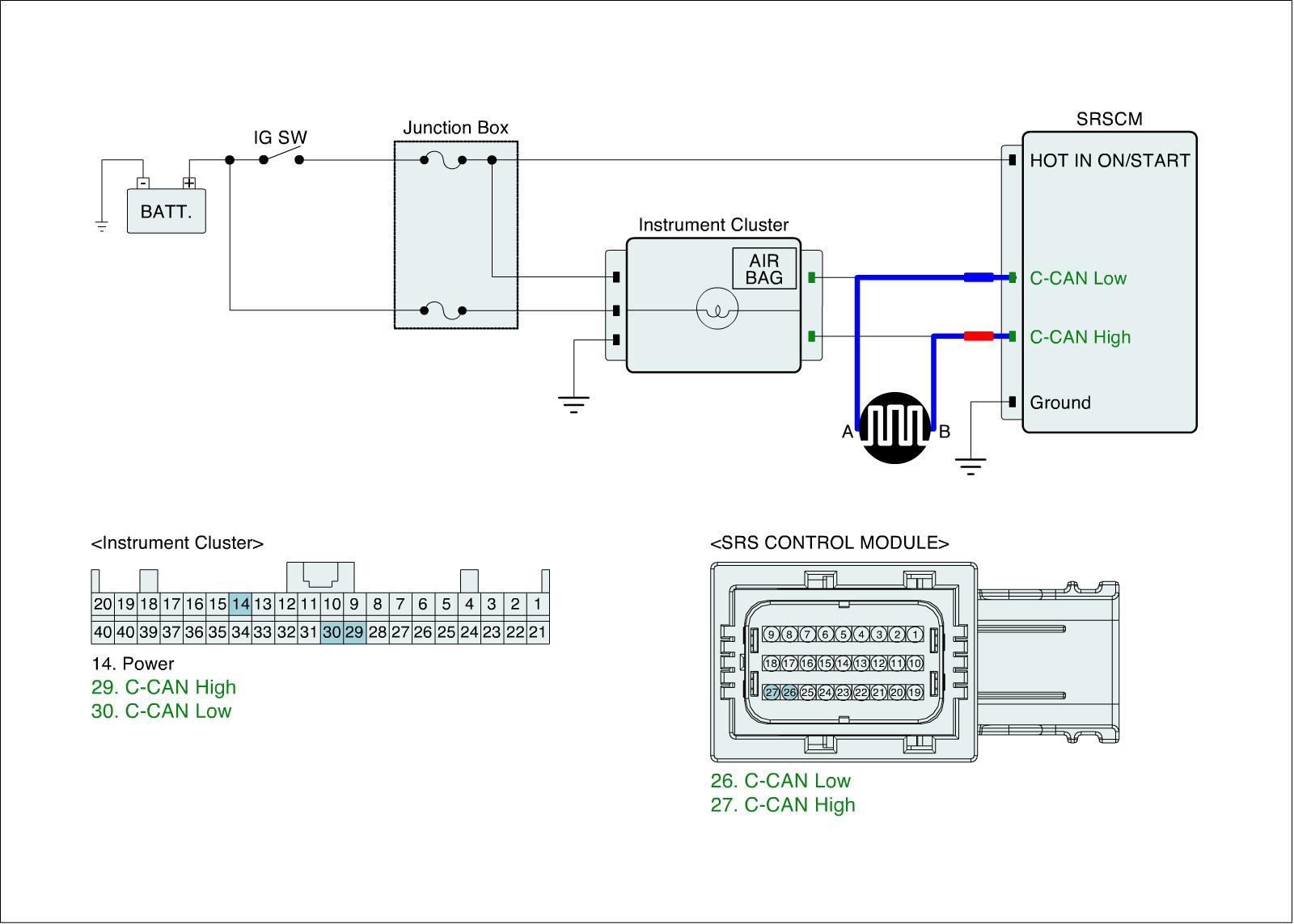

6. Measure the signal waveform on SRSCM CAN High line and Low line.

Specification :Refer to "Signal Waveform"




7. Does the measured signal waveform follow the specification?
