W/Harness Inspection

Smart Key Unit
B1971 Parking Position Input Error - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,or damage.
3. Has a problem been found ?






Signal Circuit Inspection

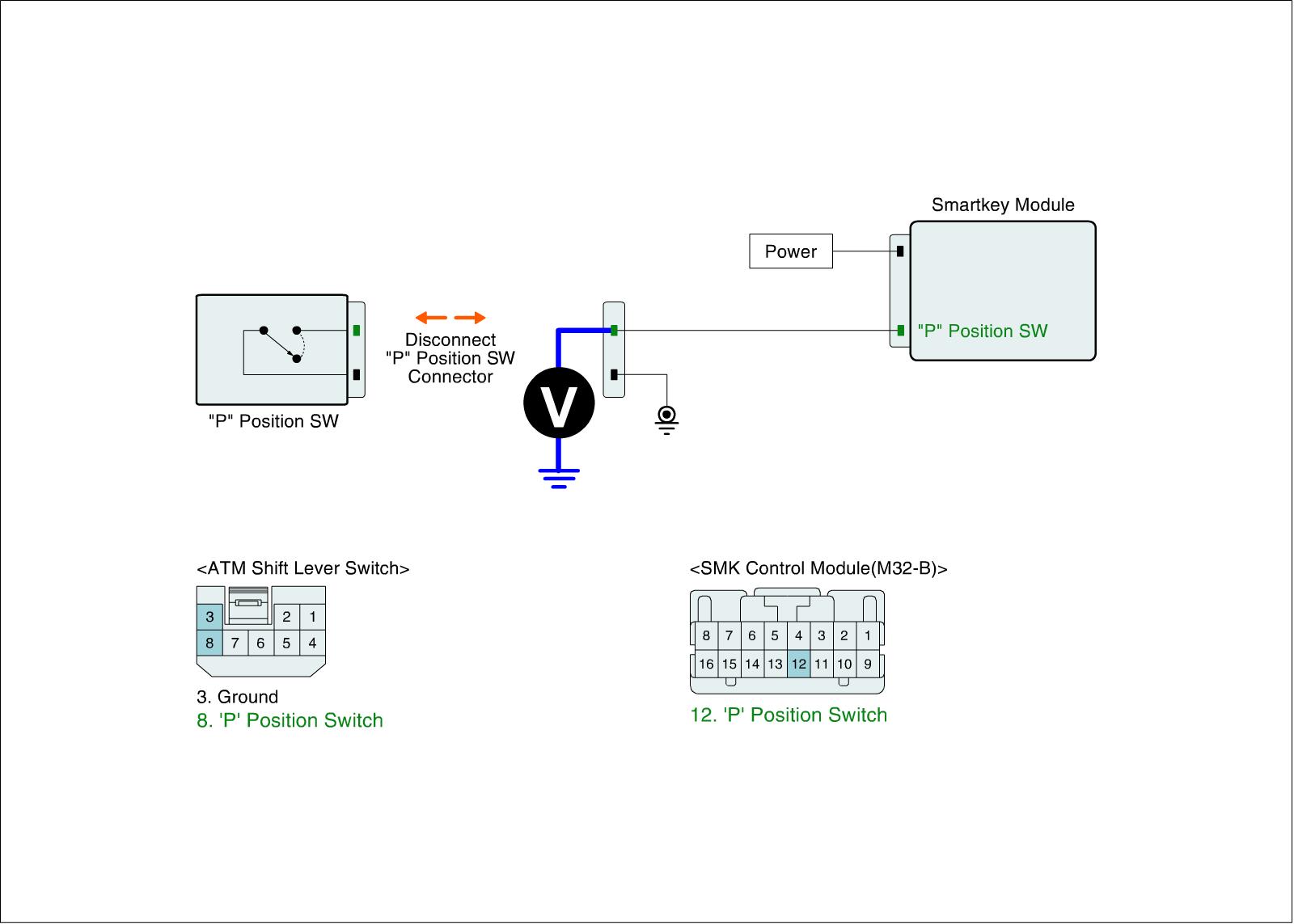

Check Signal Circuit
1. IG KEY OFF.
2. Disconnect parking position switch connector.
3. IG KEY ON.
4. Measure voltage between signal terminal of parking position switch harness connector and chassis ground.

Specification :About 7.84 - 8.55V

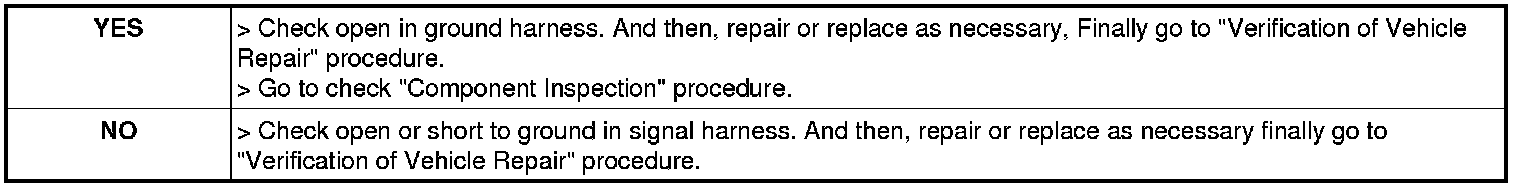

5. Is the measured voltage within specification ?
