B1971 Parking Position Input Error - Scantool Diagnostics

Monitor GDS Data

Check parking position switch status
1. Connect GDS with diagnostic connector.

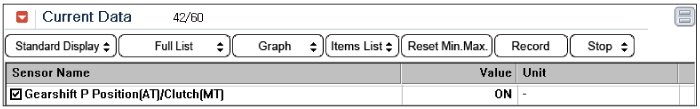

2. Check current data with GDS.
3. Check "Shift lever P position" parameter on current data.
4. Check that data is appropriately changeable according to the shift lever position in P or others.

Specification :
P position : ON
Not in P position : OFF

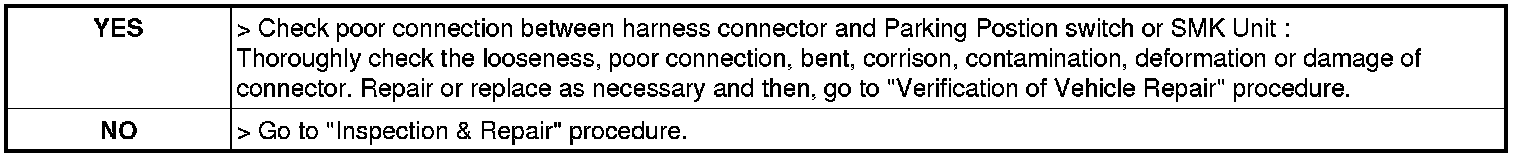

5. Is the shift lever P position normal ?
