Component Inspection

Smart Key Unit
B1971 Parking Position Input Error - Inspection/Repair:_:Component Inspection

Component Inspection

Check Parking Position Switch
1. IG KEY OFF.
2. Disconnect Parking Position switch connector.

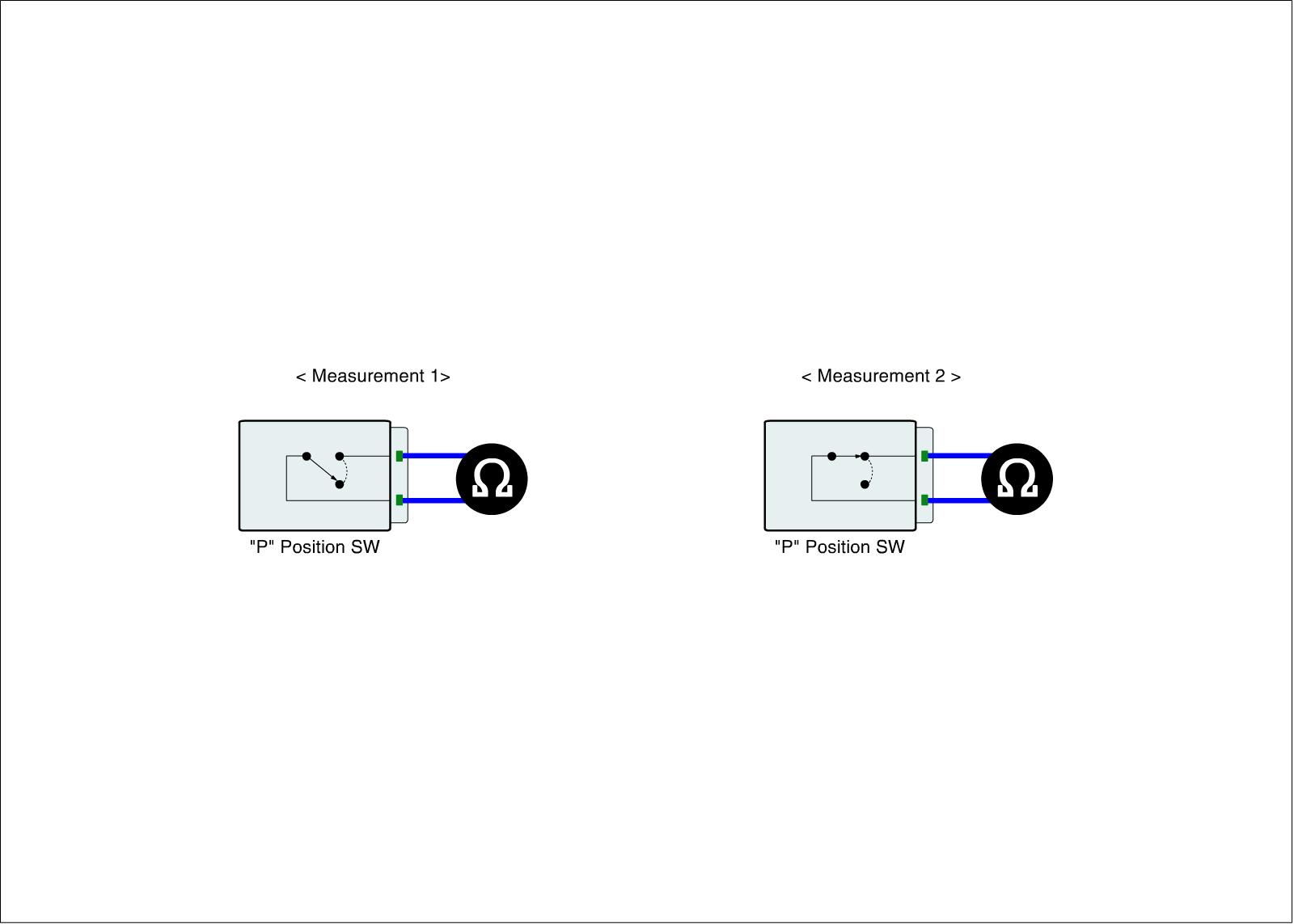

3. Measure resistance between one and the other connector when parking postion switch ON and OFF.

Specification :
Measurement 1 : Infinite (Infinity)
Measurement 2 : About below 1Ohms

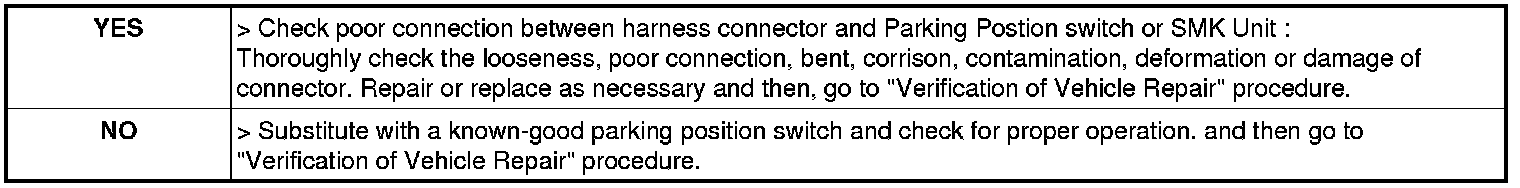

4. Is the measured resistance within specification ?
