General Information

Airbag(Event #1)
B165200 Crash Recorded in Front-Passenger Side Airbag(Replace SRSCM) - General Information

Component Location





General Description

In collision, SRSCM sends current to pertinent air bag for deployment.
Besides SRSCM performs diagnosis of overall air bag system and light warning lamp if there's any fault in it.
Main functions of SRSCM are as follows.
1. Collision and Passenger presence Detection.
2. Determination of BPT and air bag deployment in accordane with given condition.
3. Internal and external diagnosis of air bag system.
4. Warning by warning lamp if there's any fault in airbag system.
5. Proffering data for GDS diagnosis.

DTC Description

The SRSCM sets DTC B165200 if PSAB and PCAB deploys.

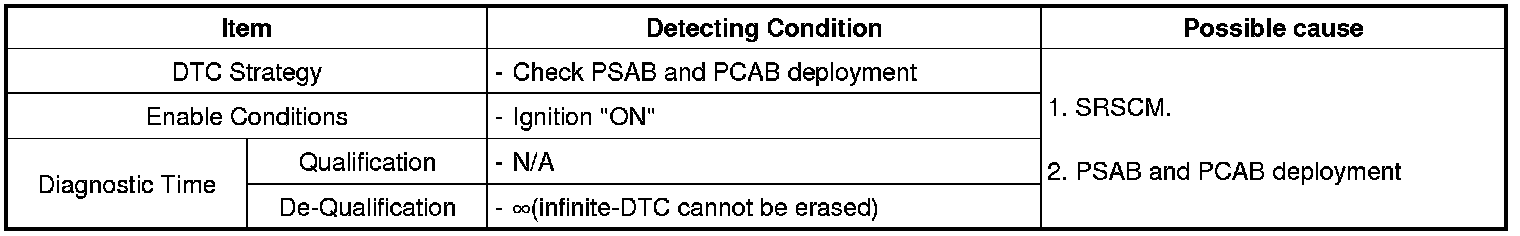

DTC Detecting Condition
