General Information

Body Control Module
B1603 CAN Bus Off - General Information

Component Location





General Description

This is DTC which is related with communication error between BCM and other units.
** Body CAN communication Control Units : BCM(Body Control Module), CLU(Cluster), SMK(Smart Key).
* CAN (Controller Area Network) : CAN is serial bus communication type which links not only communication system but also control units each other.
*2 LIN (Local Interconnect Network) : LIN is serial communication type which is used in electrical control system. (This is less expensive.)






DTC Description

This is DTC which is related with communication error between BCM and other units.
(** Control Units : BCM(Body Control Module), CLU(Cluster), SMK(Smart Key).
Case1: After short between CAN Low Line and High Line, short to ground together.
Case2: After short between CAN Low Line and High Line, short to power together.
** This code is occurred when It is not possible to transmit data by CAN Line in those way of Software and Hardware. But, It is possible to receive data by CAN Line.
This code reports BUS OFF status when data transmit error count number is over 255. The purpose is to verify the status of CAN controller and CAN communication line when error is detected.
According to operation condition, some of module which are connected to CAN line may not detect B1603.
Also, B1602 coincides with B1603 at all times.

CAUTION:
Difference between CAN ERROR and CAN BUS ERROR
CAN Error : MIL On, CAN Bus Error : No MIL

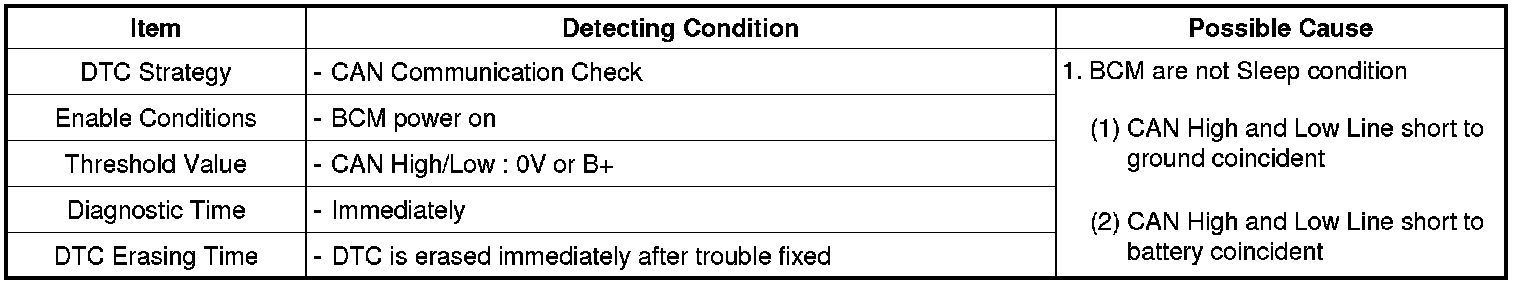

DTC Detecting Condition





Diagnostic Circuit Diagram





Signal Waveform & Data








Fig.1) CAN Low/High Signal Waveform
Fig.2) CAN BUS Voltage Level (Low Speed CAN)
