Scantool Diagnostics

Body Control Module
B1602 CAN Error - Scantool Diagnostics

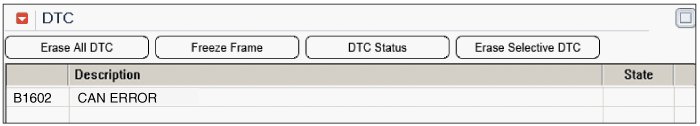

Monitor GDS Data

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions"

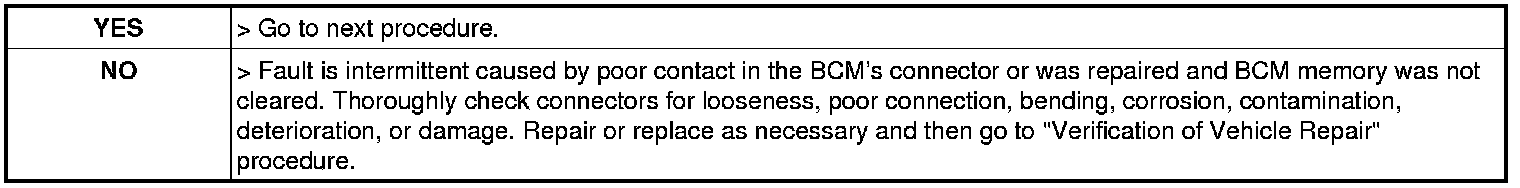

5. Is the same DTC occurred again ?
