General Information

Airbag(Event #1)
B133500 FIS(Front Impact Sensor)-Passenger Wrong ID - General Information

Component Location





General Description

Front Impact Sensor(FIS)located at both sides of the front of engine room detects head-on collision.
When FIS delivers and if both FIS and safing sensor detects collision simultaneously, SRSCM operates front air bag.
and if both FIS and safing sensor detects collision simultaneously, SRSCM operates front air bag.

DTC Description

The SRSCM sets DTC B133500 if PFIS with wrong ID is detected.

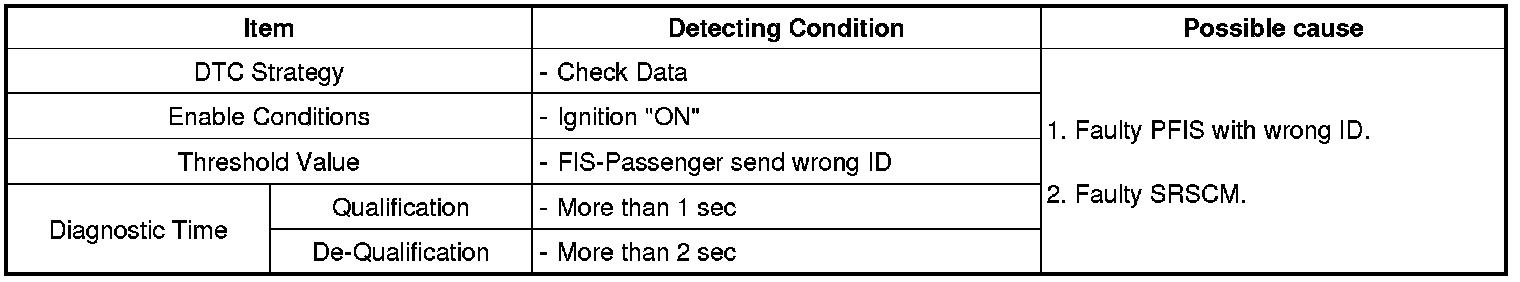

DTC Detecting Condition





Diagnostic Circuit Diagram
