General Information

Airbag(Event #1)
B133100 FIS(Front Impact Sensor)-Passenger Short to Ground - General Information

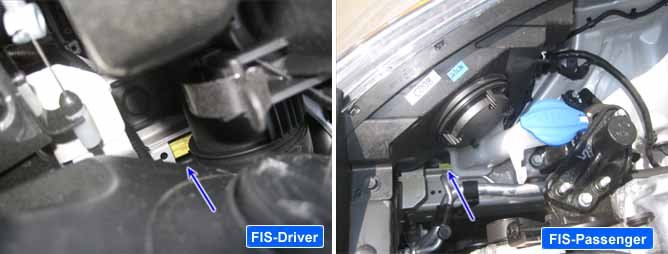

Component Location





General Description

Front Impact Sensor(FIS)located at both sides of the front of engine room detects head-on collision.
When FIS delivers collision signal to SRSCM, SRSCM checks if safing sensor located in SRSCM detects collusion.
and if both FIS and safing sensor detects collision simultaneously, SRSCM operates front air bag.

DTC Description

The SRSCM sets DTC B133100 if there is short to ground in PFIS harness.

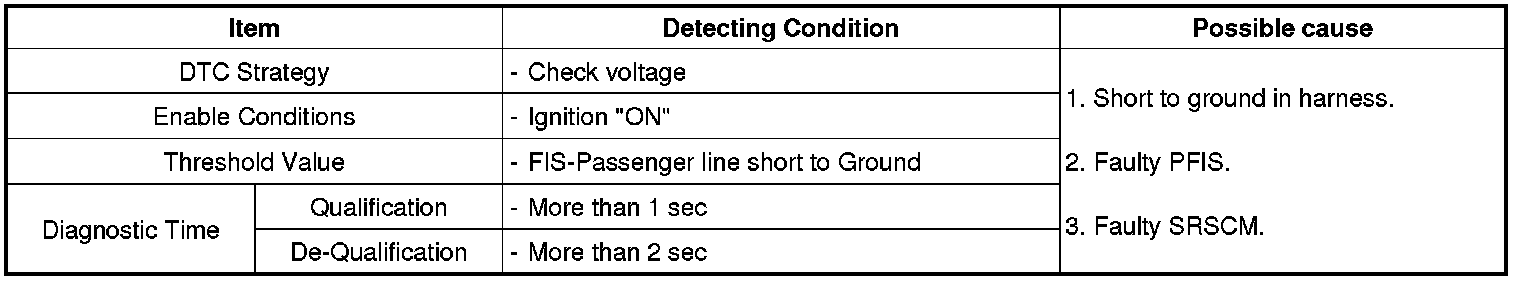

DTC Detecting Condition

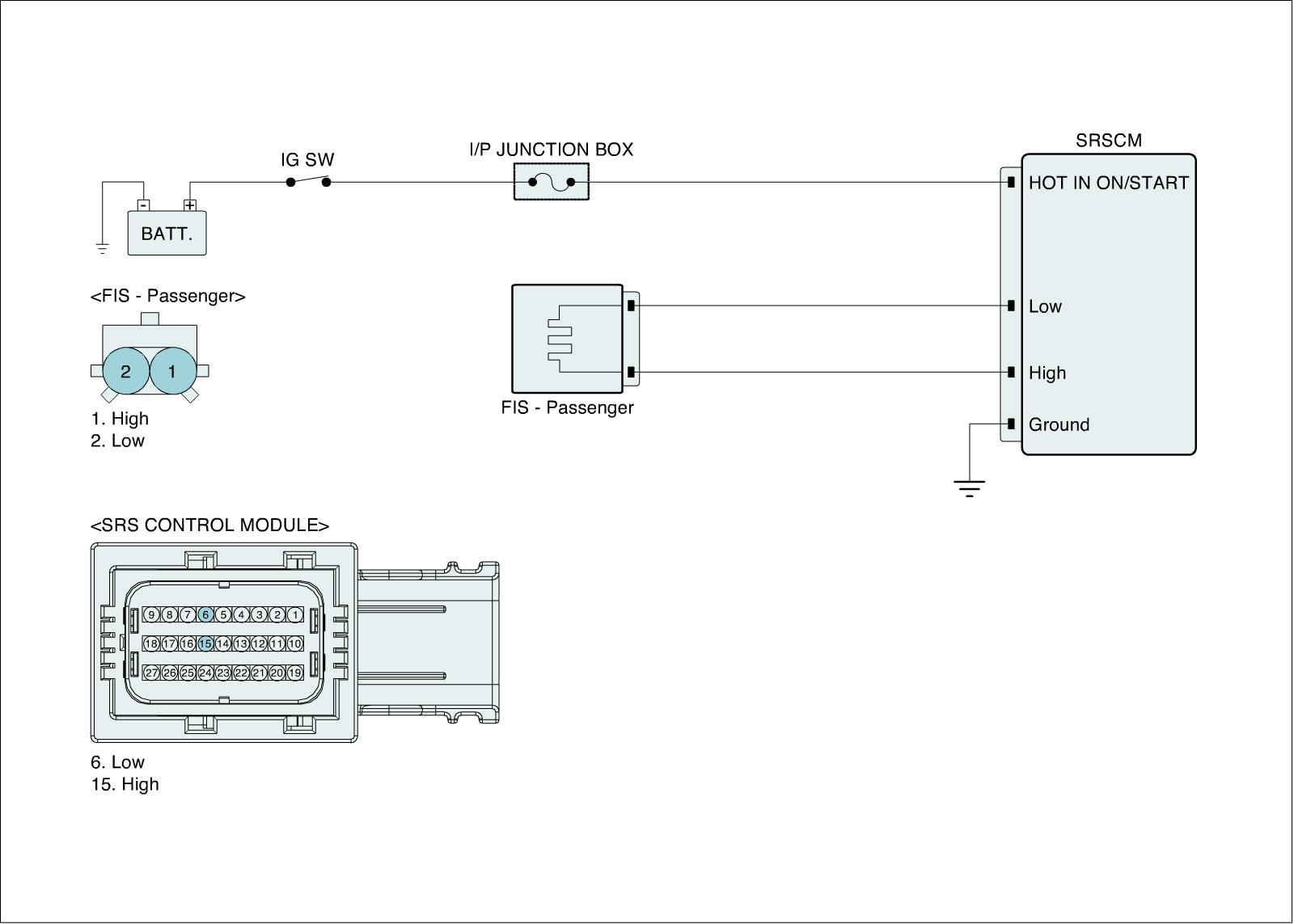

Diagnostic Circuit Diagram
