General Information
Airbag(Event #1)
B133000 FIS(Front Impact Sensor)-Driver Wrong ID - General Information
Component Location
General Description
Front Impact Sensor(FIS)located at both sides of the front of engine room detects head-on collision.
When FIS delivers collision signal to SRSCM, SRSCM checks if safing sensor located in SRSCM detects collusion.
and if both FIS and safing sensor detects collision simultaneously, SRSCM operates front air bag.
DTC Description
The SRSCM sets DTC B133000 if DFIS with wrong ID is detected

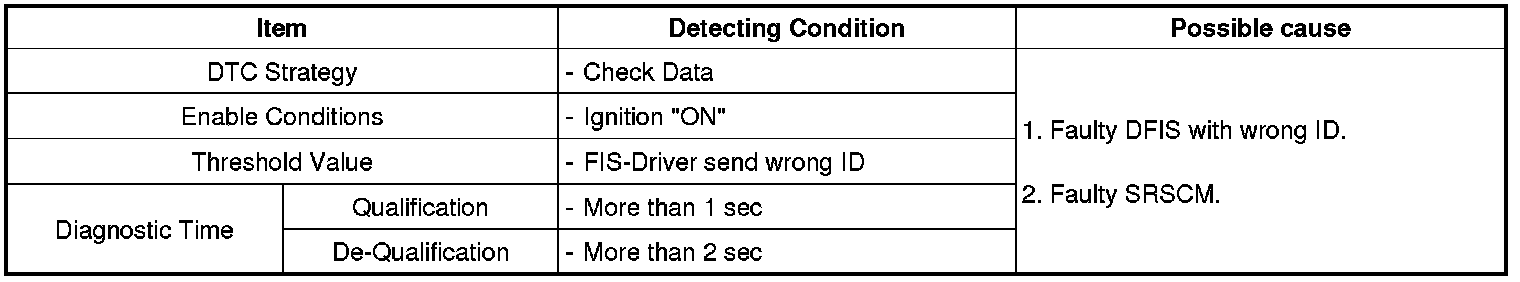

DTC Detecting Condition
Diagnostic Circuit Diagram
