Scantool Diagnostics

Body Control Module
B1217 Rear Right Sensor Fault - Scantool Diagnostics

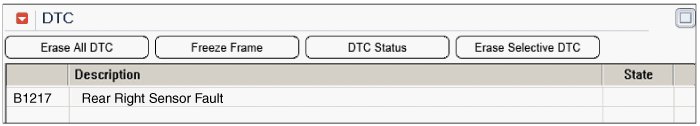

Monitor GDS Data

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC.

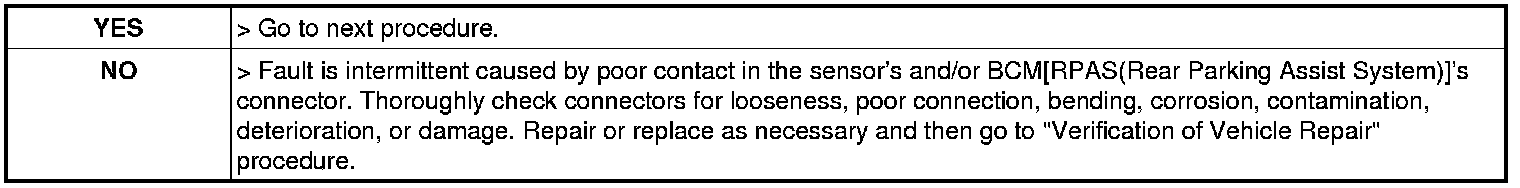

5. Is the same DTC occurred again ?
