Scantool Diagnostics

Airbag(Event #1)
B110100 Battery Voltage High - Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Current Data" mode.
3. Monitor the "Battery Voltage" parameter on the Scantool.

Specification :Approx. 8 ≤ Vbatt ≤ 16




Fig.1) Normal Data

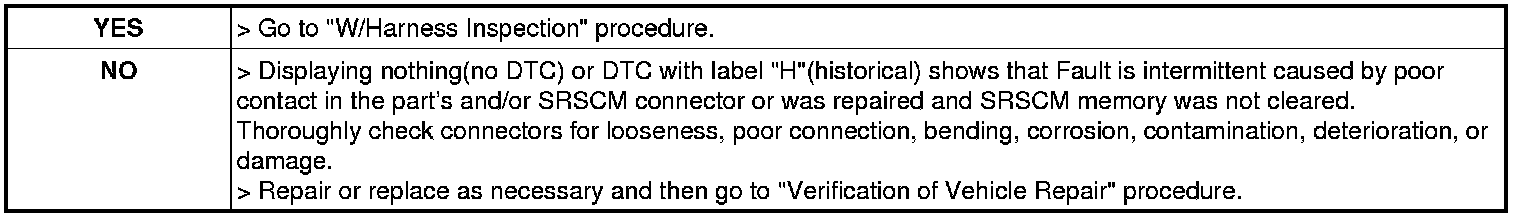

4. Is parameter displayed within specifications?
