Home >> Kia >> 2012 >> Optima L4-2.4L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Diagrams >> Connector Views >> Driver Power Window Safety Module

Driver Power Window Safety Module

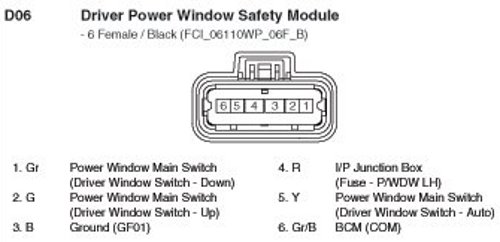

D06 Driver Power Window Safety Module:
