Electrical Diagrams





Circuit Diagram

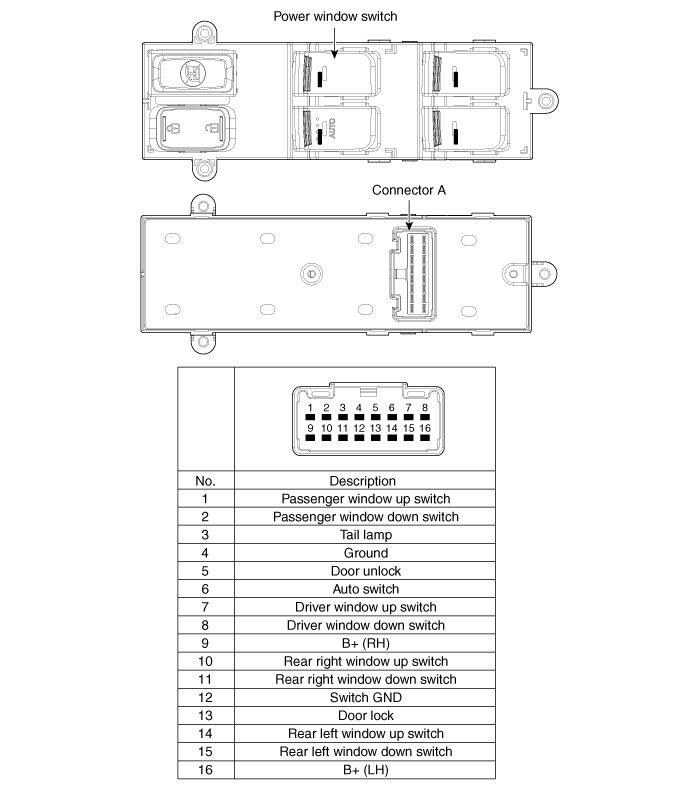

Driver Power Window Switch (1)

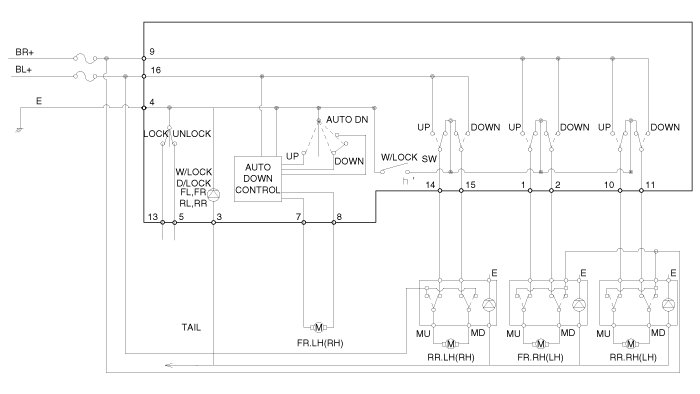

Driver Power Window Switch (2)

[Auto Down]

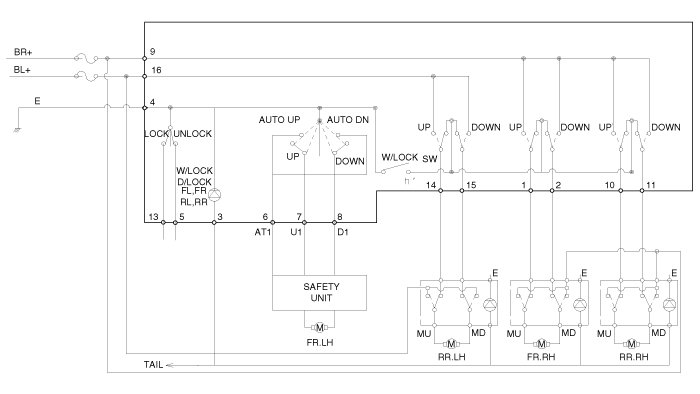

[Safety Up/Down]

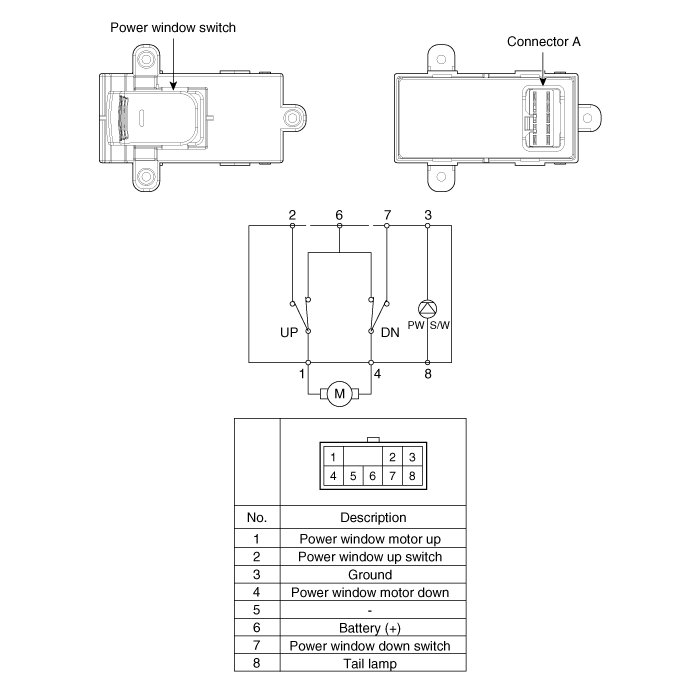

Passenger And Rear Power Window Switch

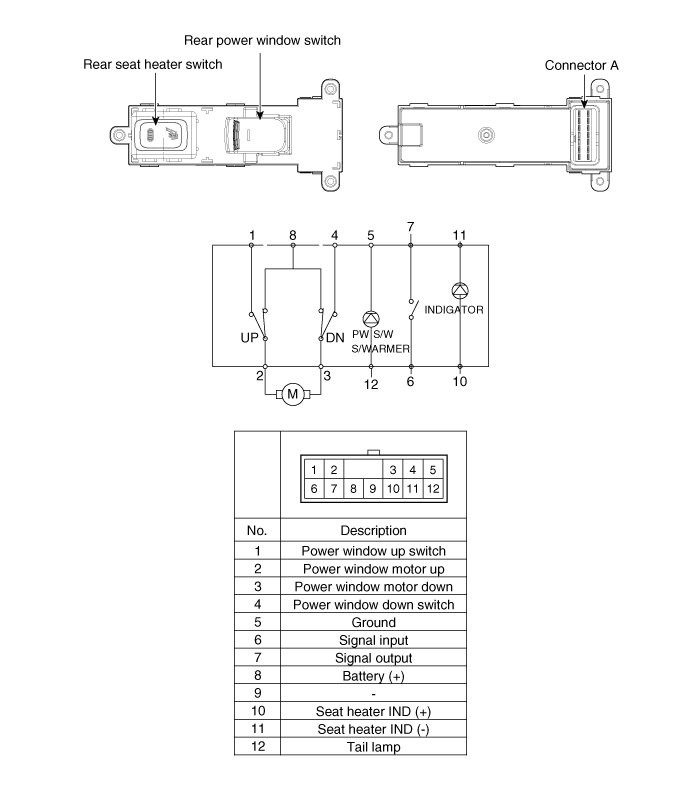

Rear Power Window + Seat Heater Switch
