System Specifications





Specifications

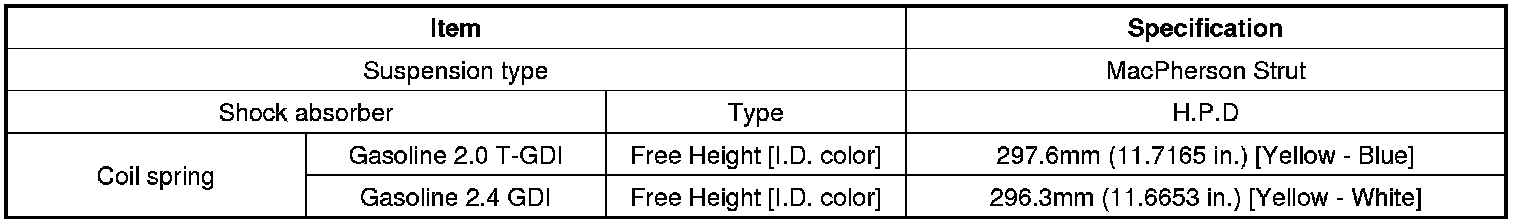

Front Suspension

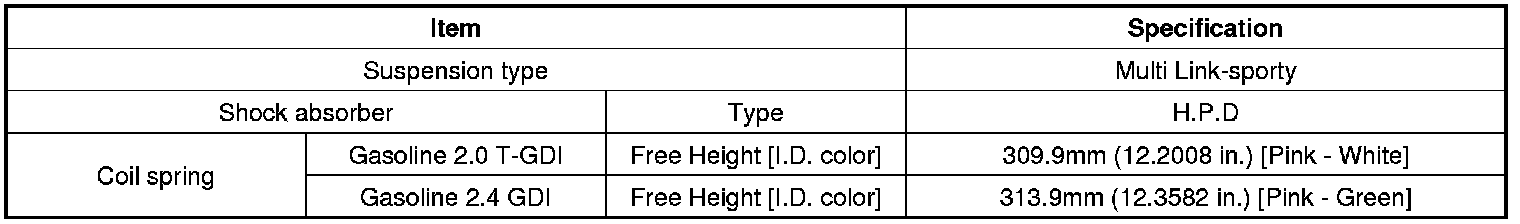

Rear Suspension

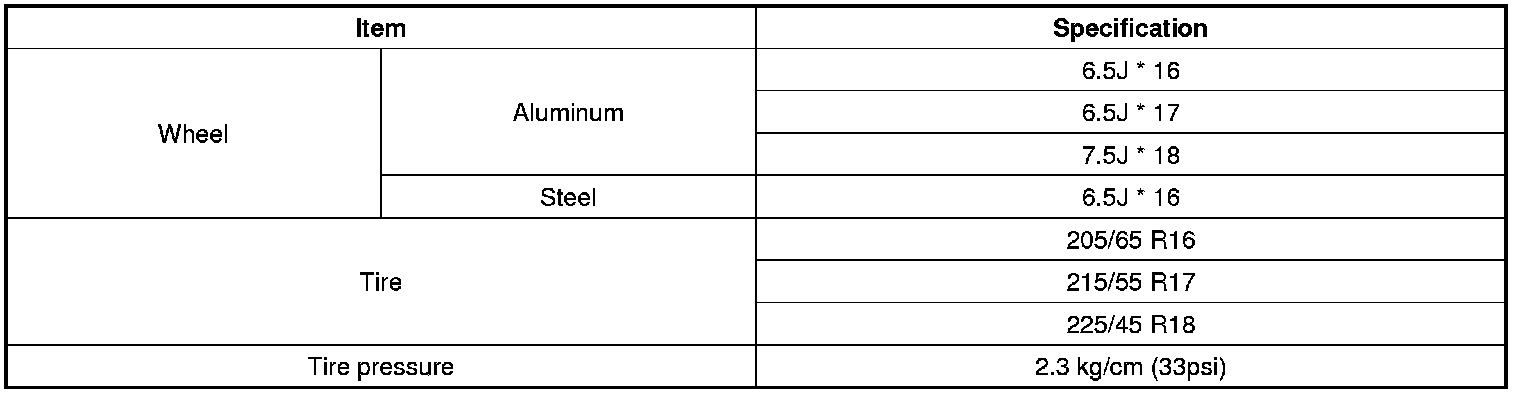

Wheel & Tire

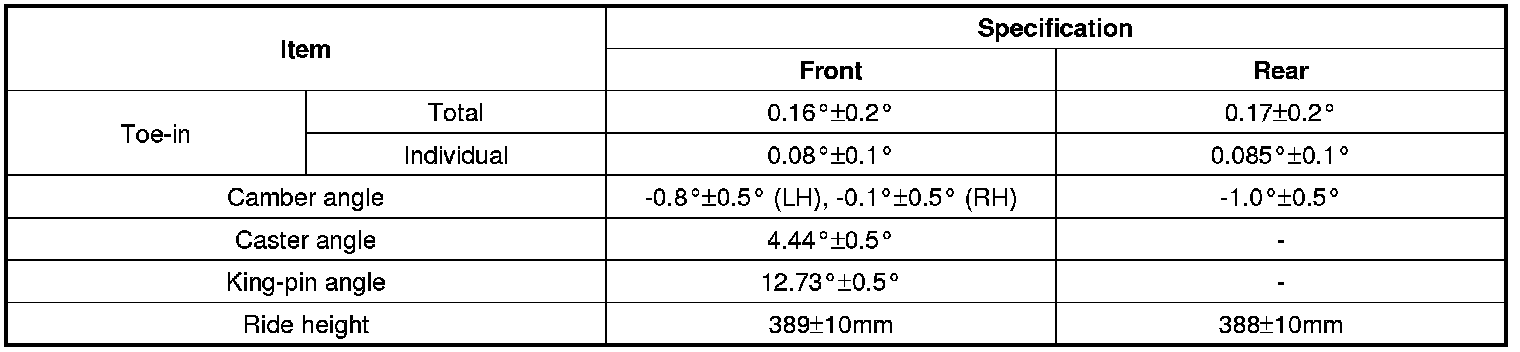

Wheel Alignment






Tightening Torque
Front Suspension





Rear Suspension
