Home >> Kia >> 2012 >> Optima L4-2.4L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Acceleration/Deceleration Sensor >> Diagrams

Acceleration/Deceleration Sensor: Diagrams

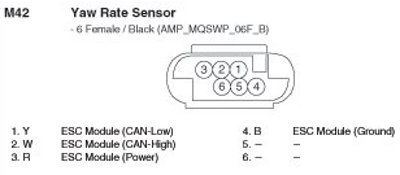

M42 Yaw Rate Sensor:
