Circuit Diagram





Connector Terminal Function

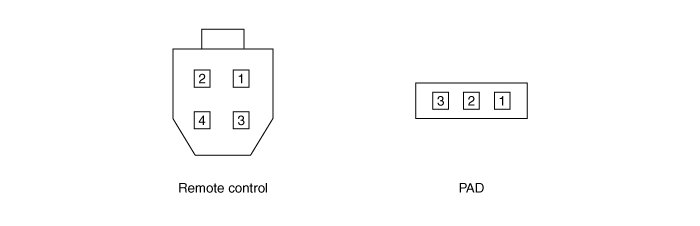

1. Connector terminal

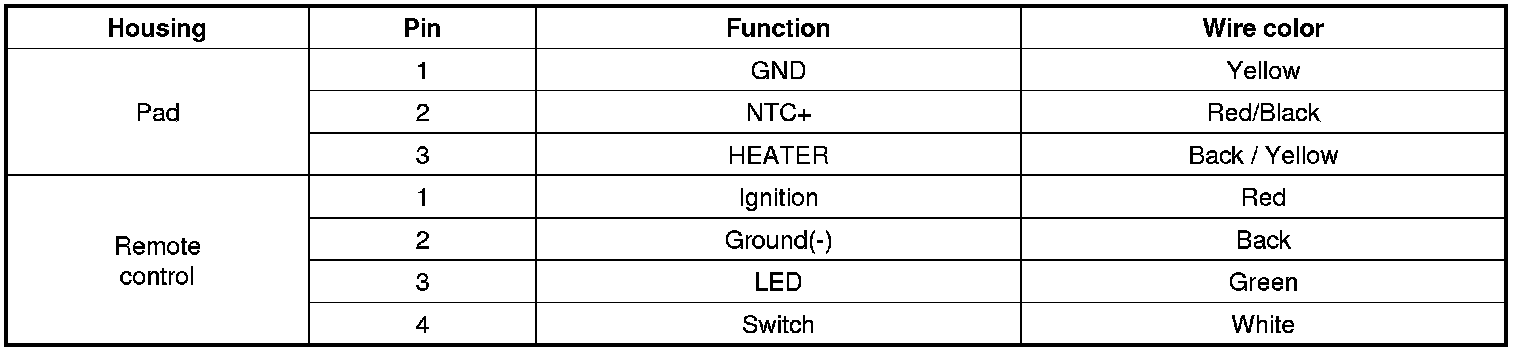

2. Terminal Function

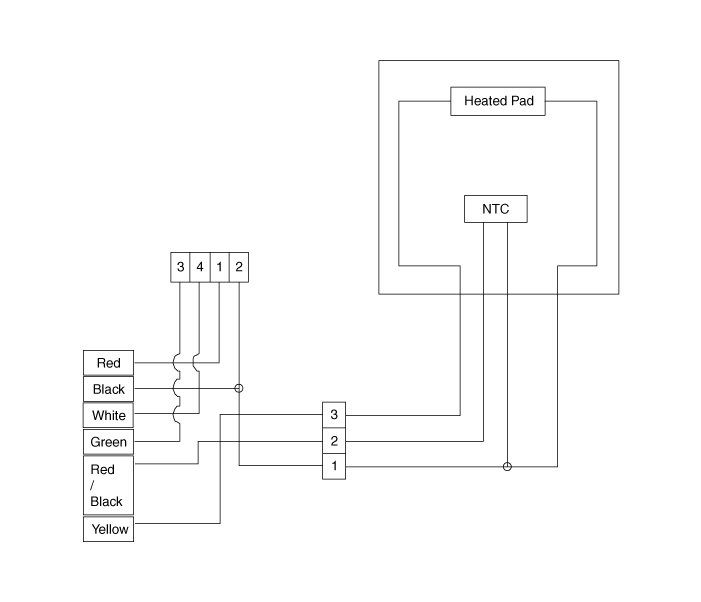

System Circuit Diagram
