Engine Control System (4)

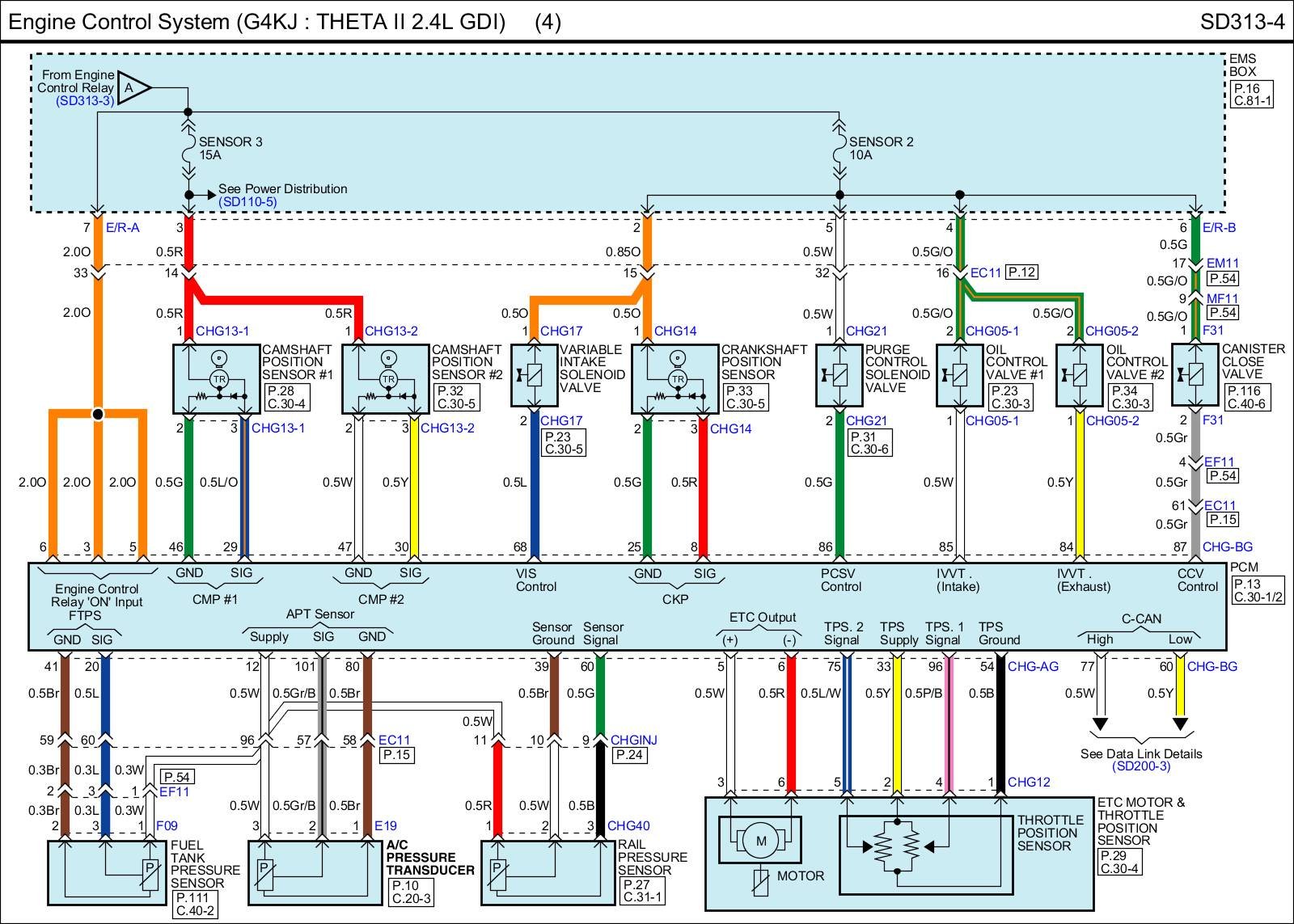

SD313-4 Engine Control System (4):

Next Diagram Engine Control System (5)

Previous Diagram Engine Control System (3)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
