Home >> Kia >> 2012 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set SD879 (Defogger System)

Diagram Set SD879 (Defogger System)

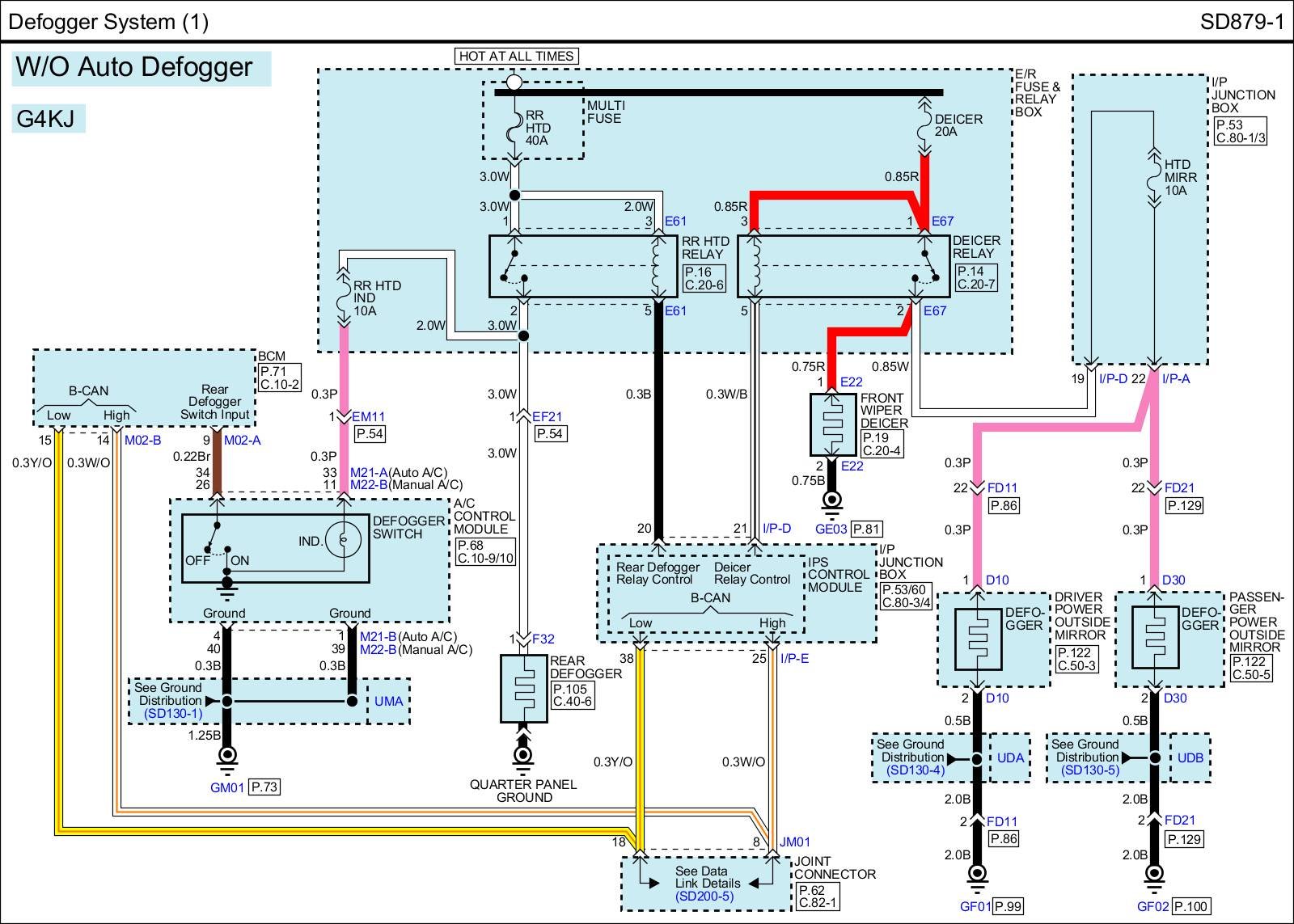

SD879-1 Defogger System (1):




SD879-3 Defogger System (3):

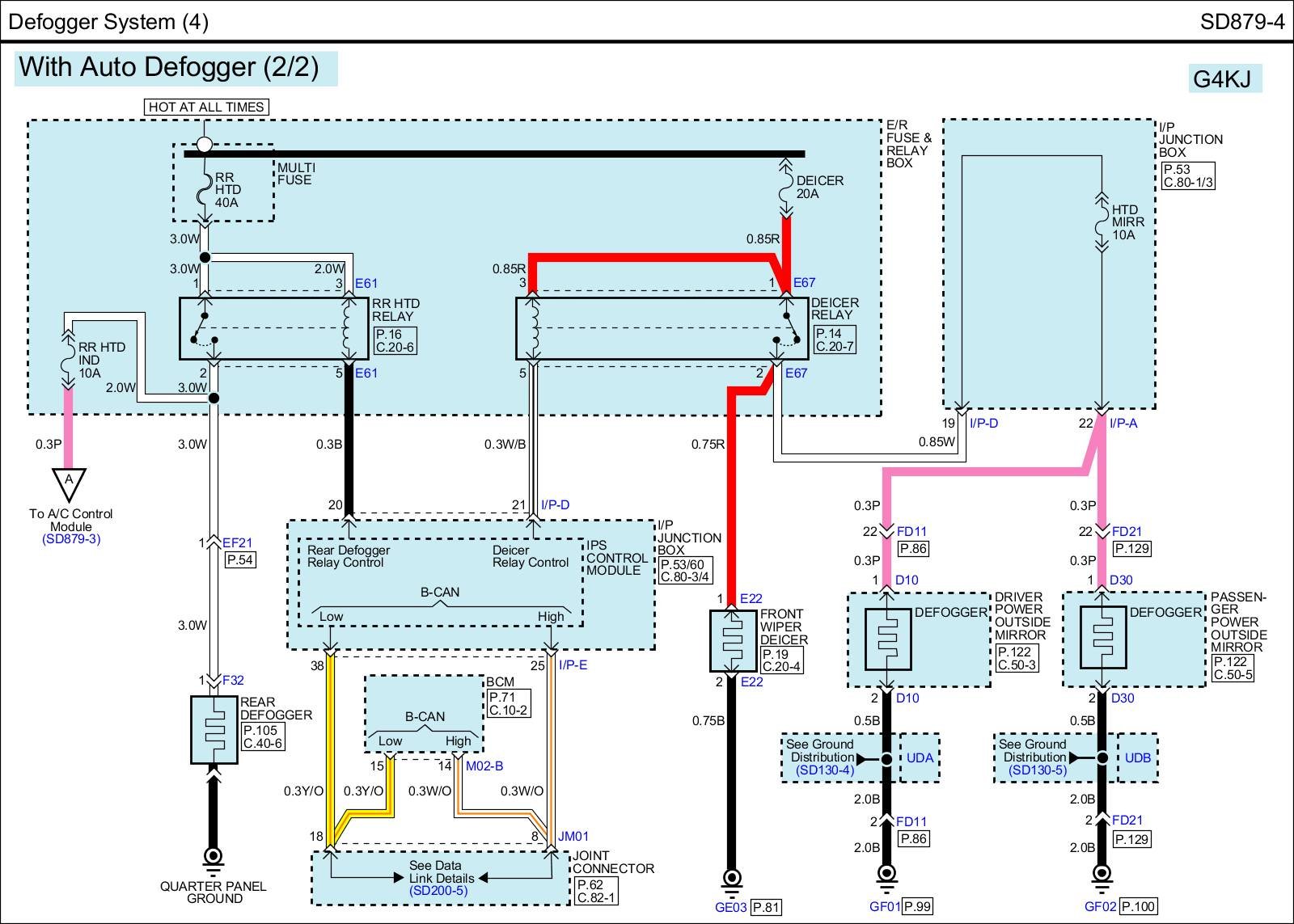

SD879-4 Defogger System (4):
