Home >> Kia >> 2012 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Control Module, A/T

Control Module, A/T





1. TCM Connector and Terminal Function

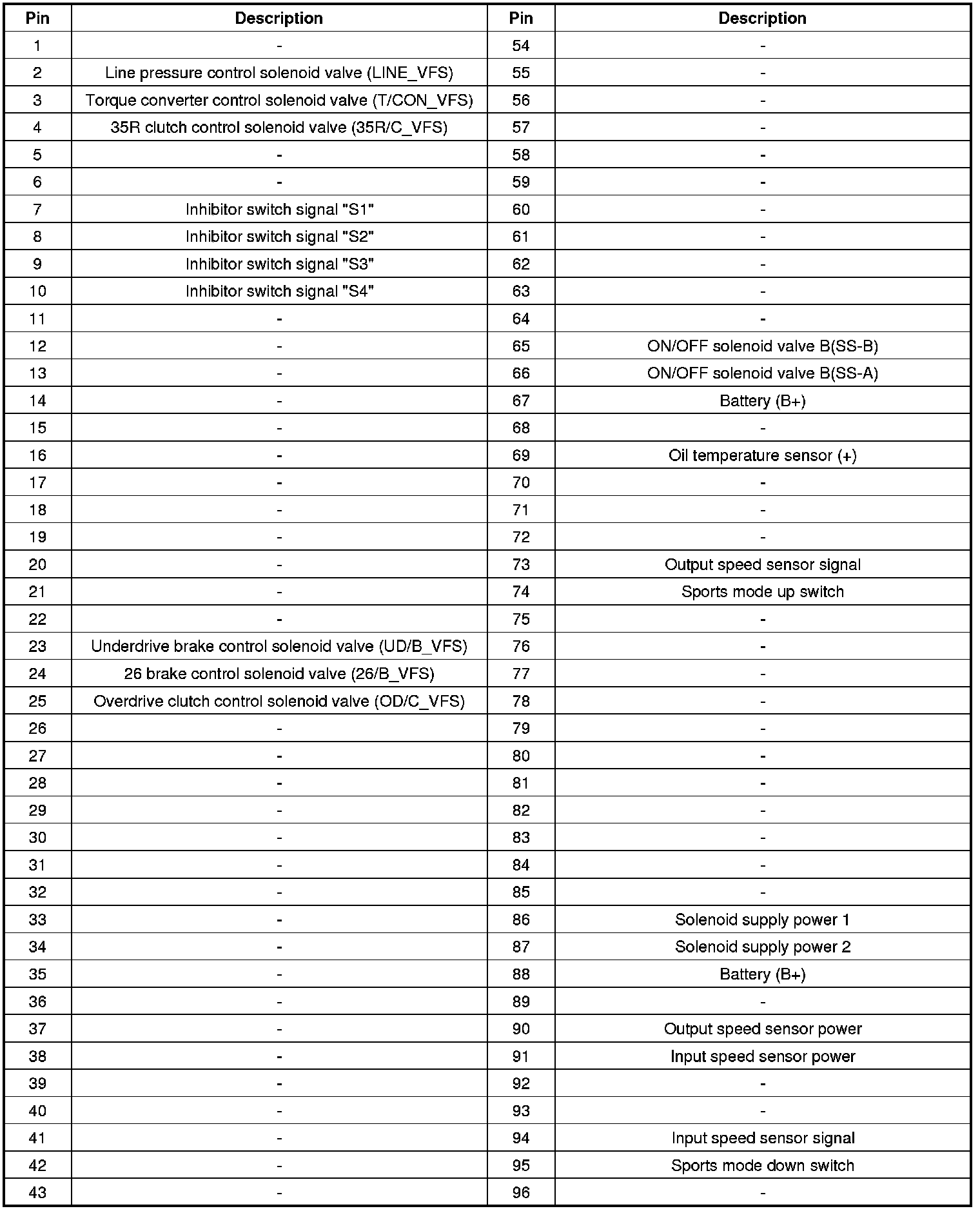

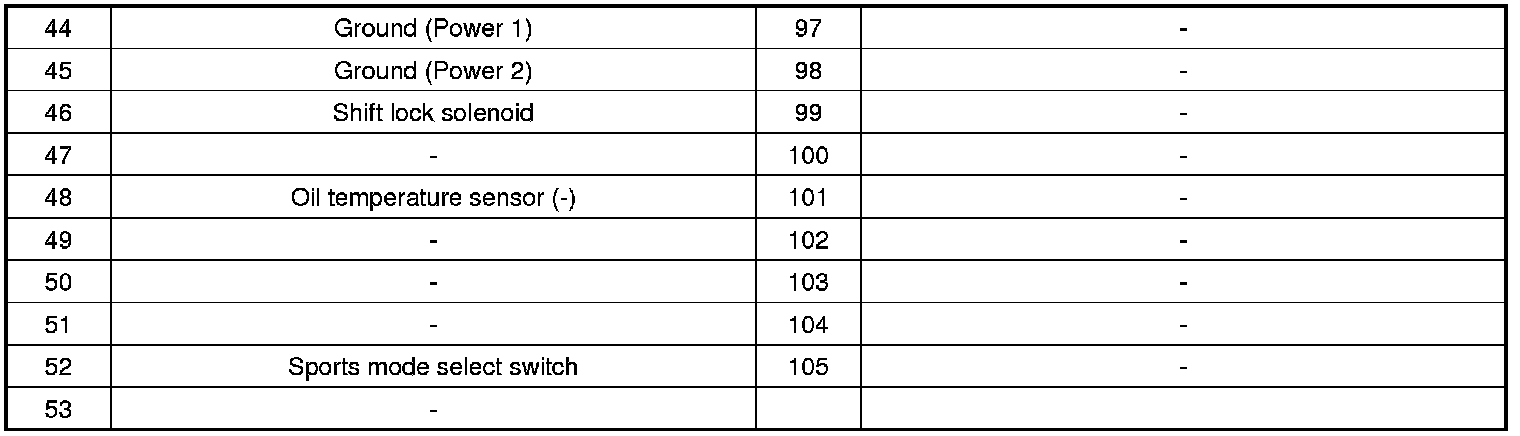

2. TCM Terminal Function

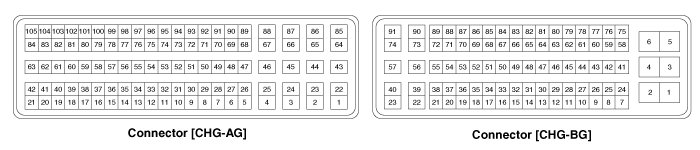

Connector [CHG-AG]

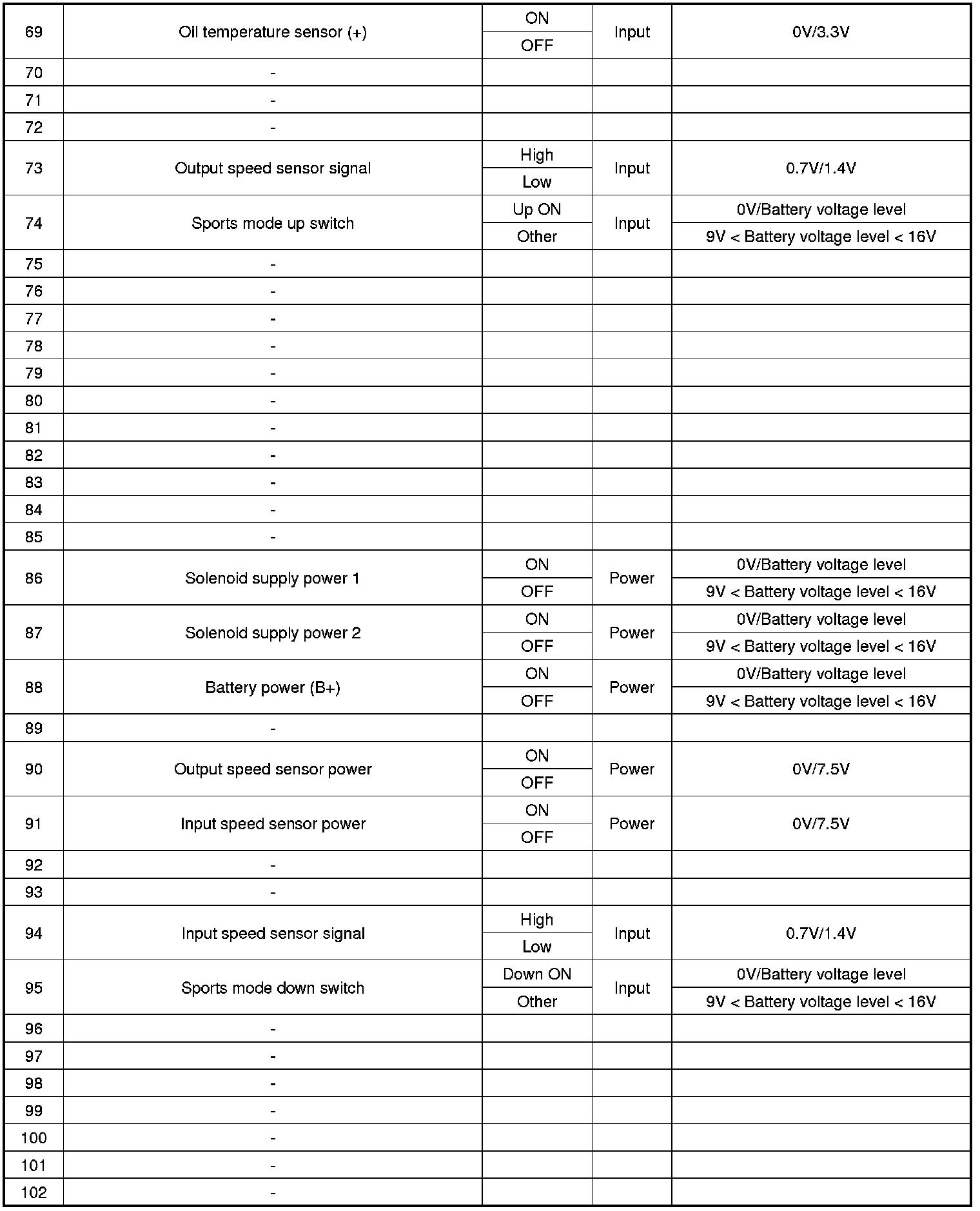

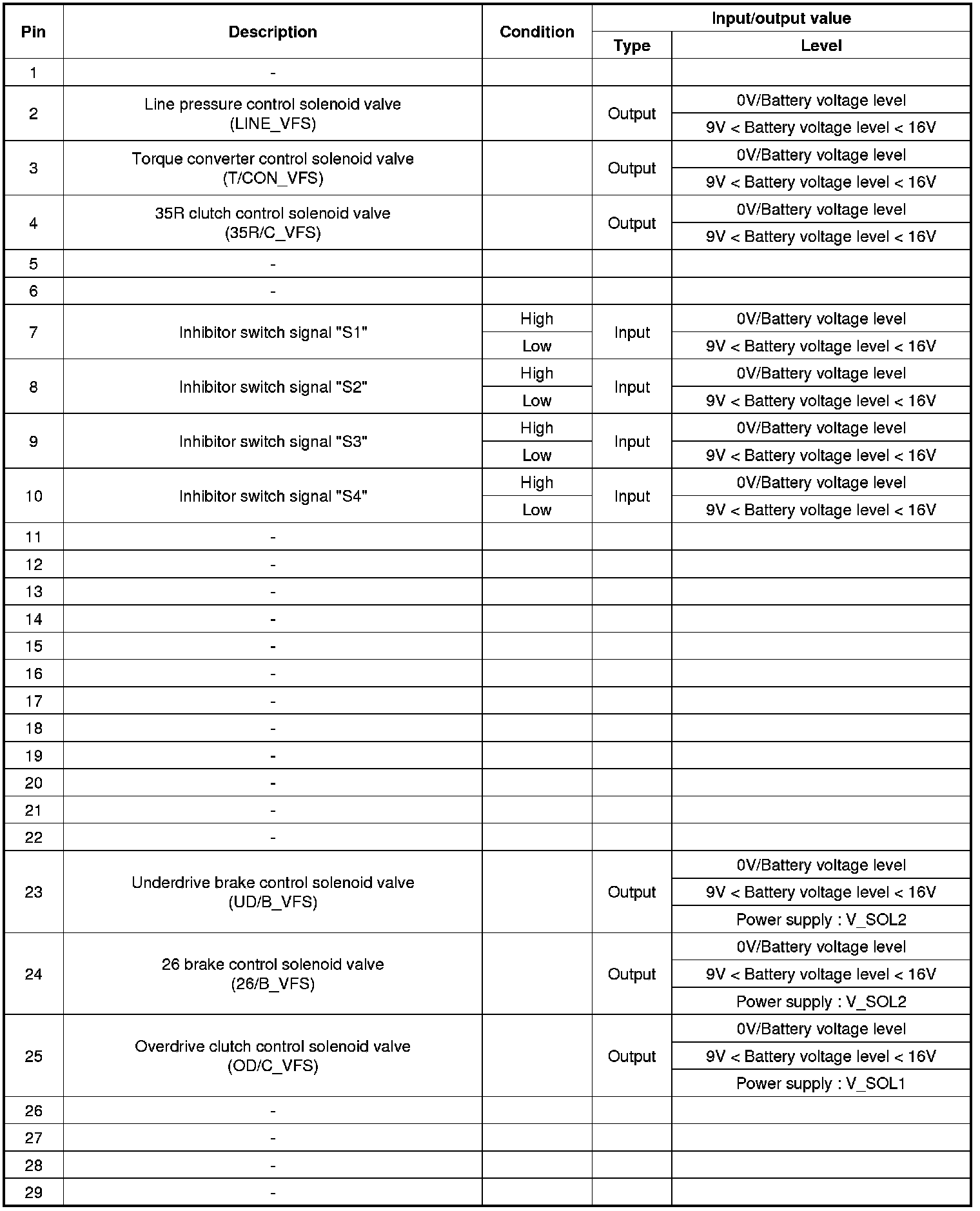

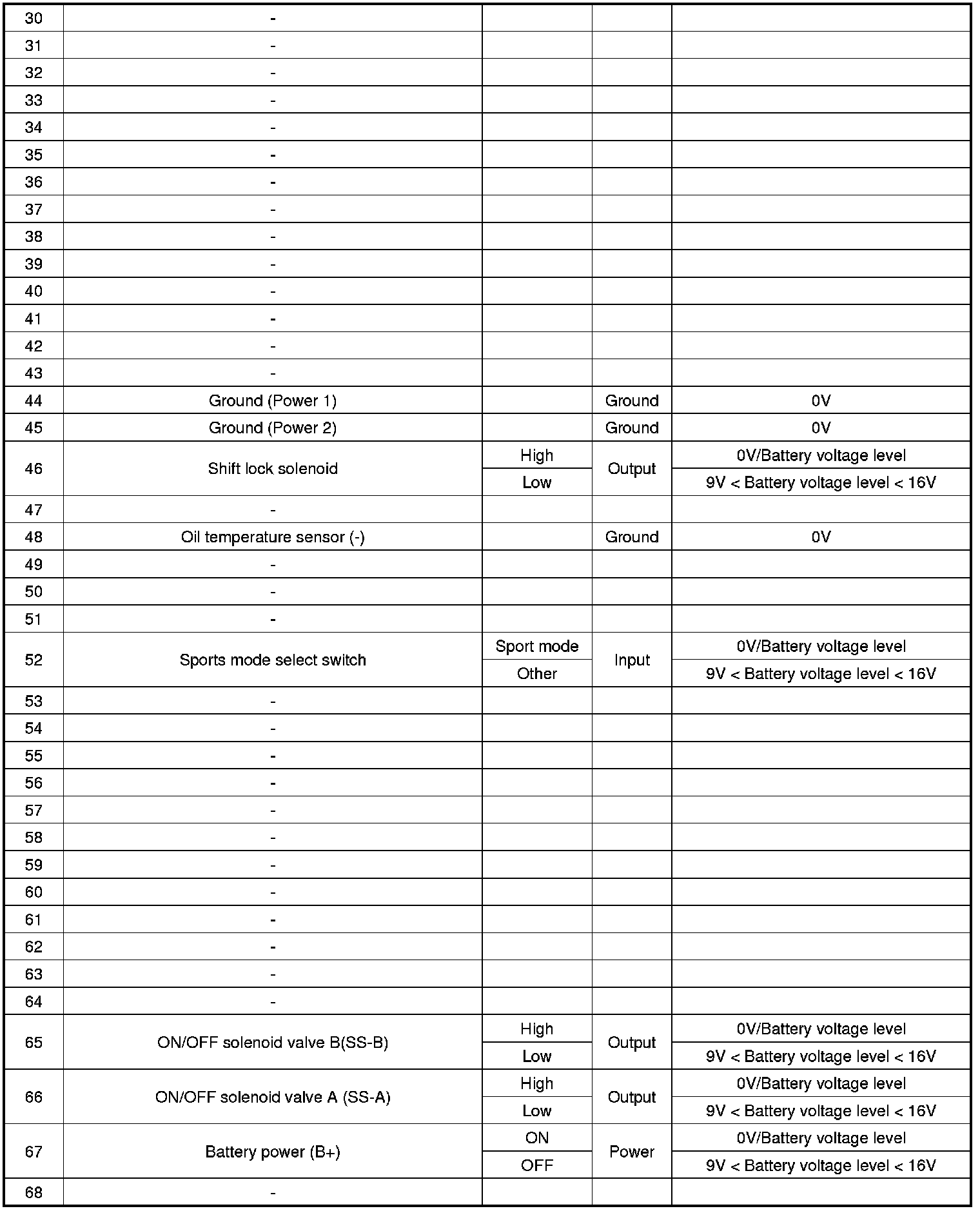

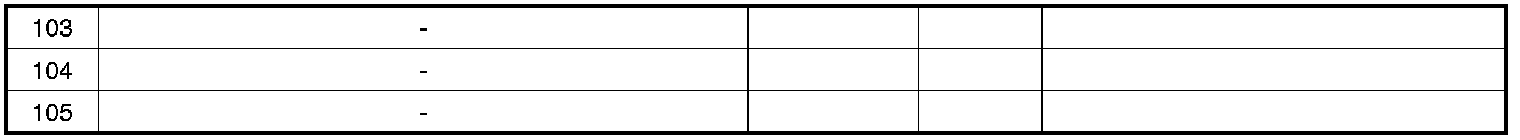

TCM Terminal Input/ Output Signal

Connector [CHG-AG]

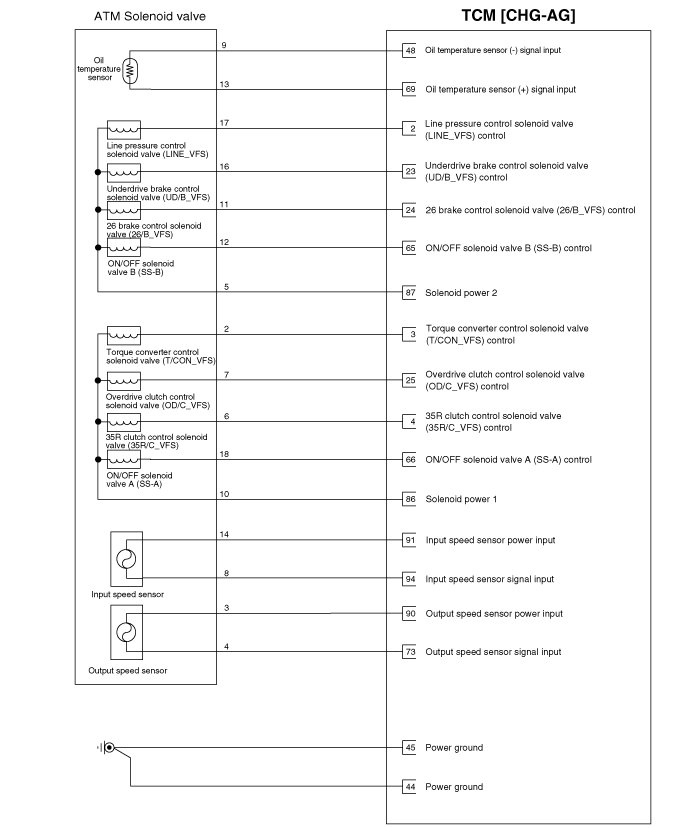

Circuit Diagram
