Scantool Diagnostics

Smart Key Code Saving
P1676 Immobilizer-Smartra Message Error - Scantool Diagnostics

Monitor Scantool Data

1. IG KEY "ON" & Engine "OFF".
2. Erase DTC after connecting GDS.
3. Check Smart key status if DTC is retrieved.




Fig.1) It shows that 2(two) FOB key is registered, Smart Key PCM is learnt status.

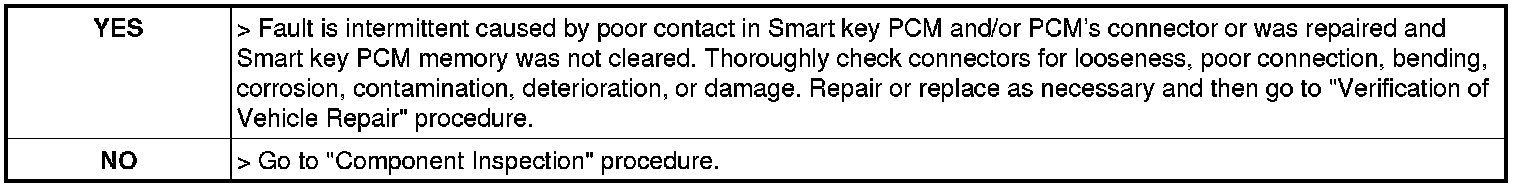

4. Is the Smart key PCM learnt status ?
