B1603 CAN Bus Off - Scantool Diagnostics

GDS Data Analysis

1. Connect GDS.
2. IG "ON" and engine "OFF".

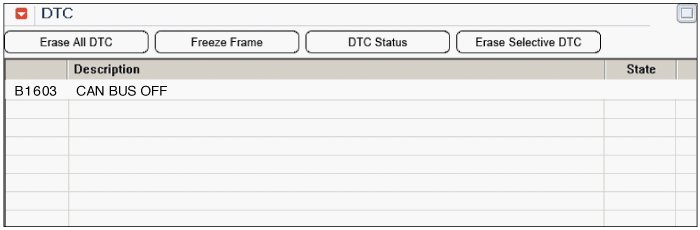

3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .




5. Is the same DTC occurred again?
