Instrument Cluster / Carrier: Description and Operation

Description

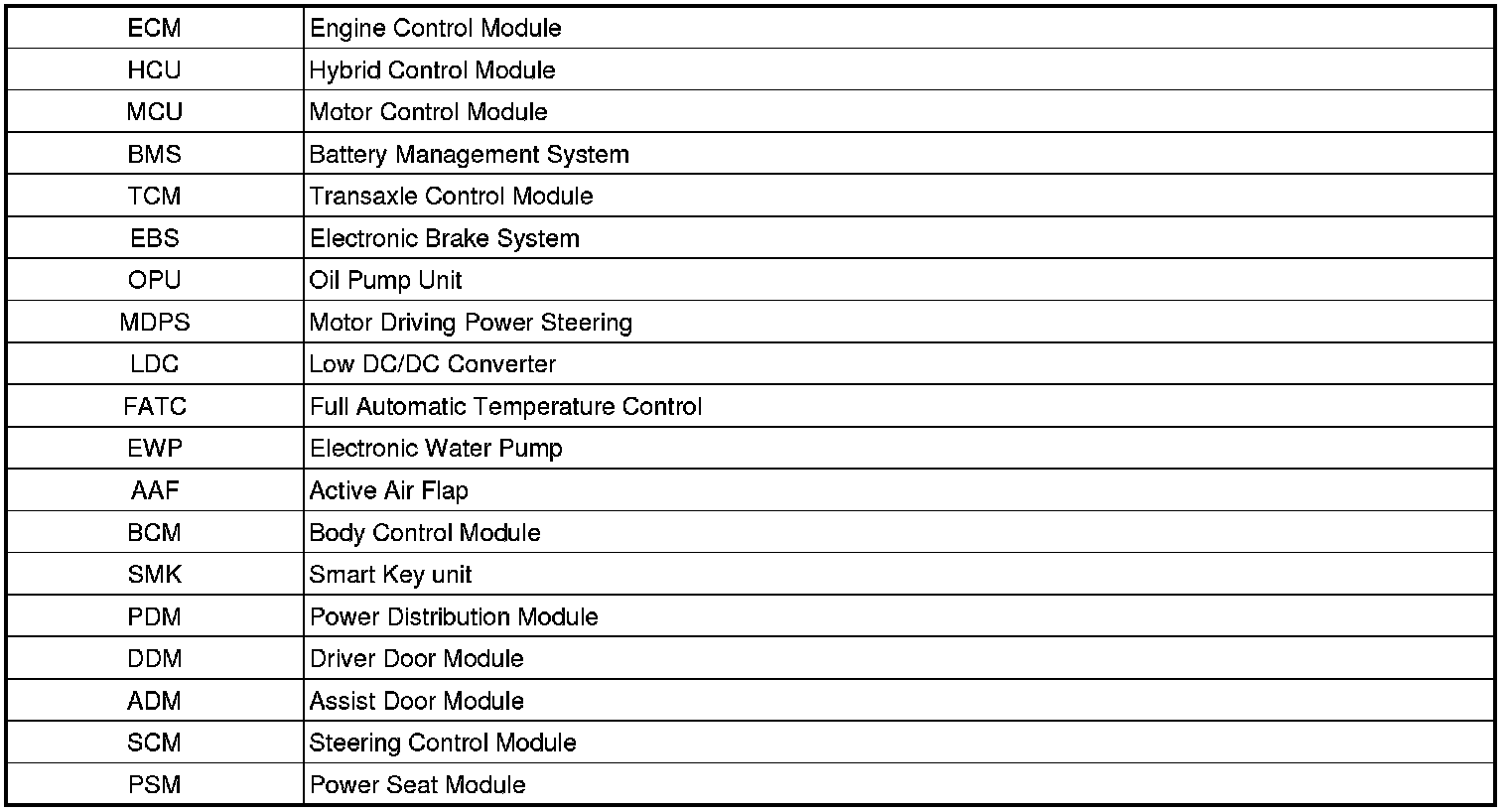

Cluster Network Diagram










Active ECO System
The ECO is a feature for improving fuel efficiency while driving. It is engaged by activating the switch on the steering wheel.
The detailed functions of the ECO features are listed as a follows.
1. Shift Pattern
A. ECO Shift Pattern : Reduce shift pattern, Prevent lift foot-up
2. Electrical Load
A. Reduce LDC electrical load
3. Driving Mode
A. Torque Control : Increase regenerative energy by disengaging engine clutch in all deceleration area
4. A/C
A. ECO A/C Mode : Controls the temperature at about 2 - 3°C higher than normal modes
5. Regenerative Braking
A. Enhanced regenerative braking performance
6. Others
A. Achieve efficient SOC control by using drive modes that minimize power loss
