Home >> Kia >> 2012 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Service Precautions >> Hybrid System Precaution

Hybrid System Precaution

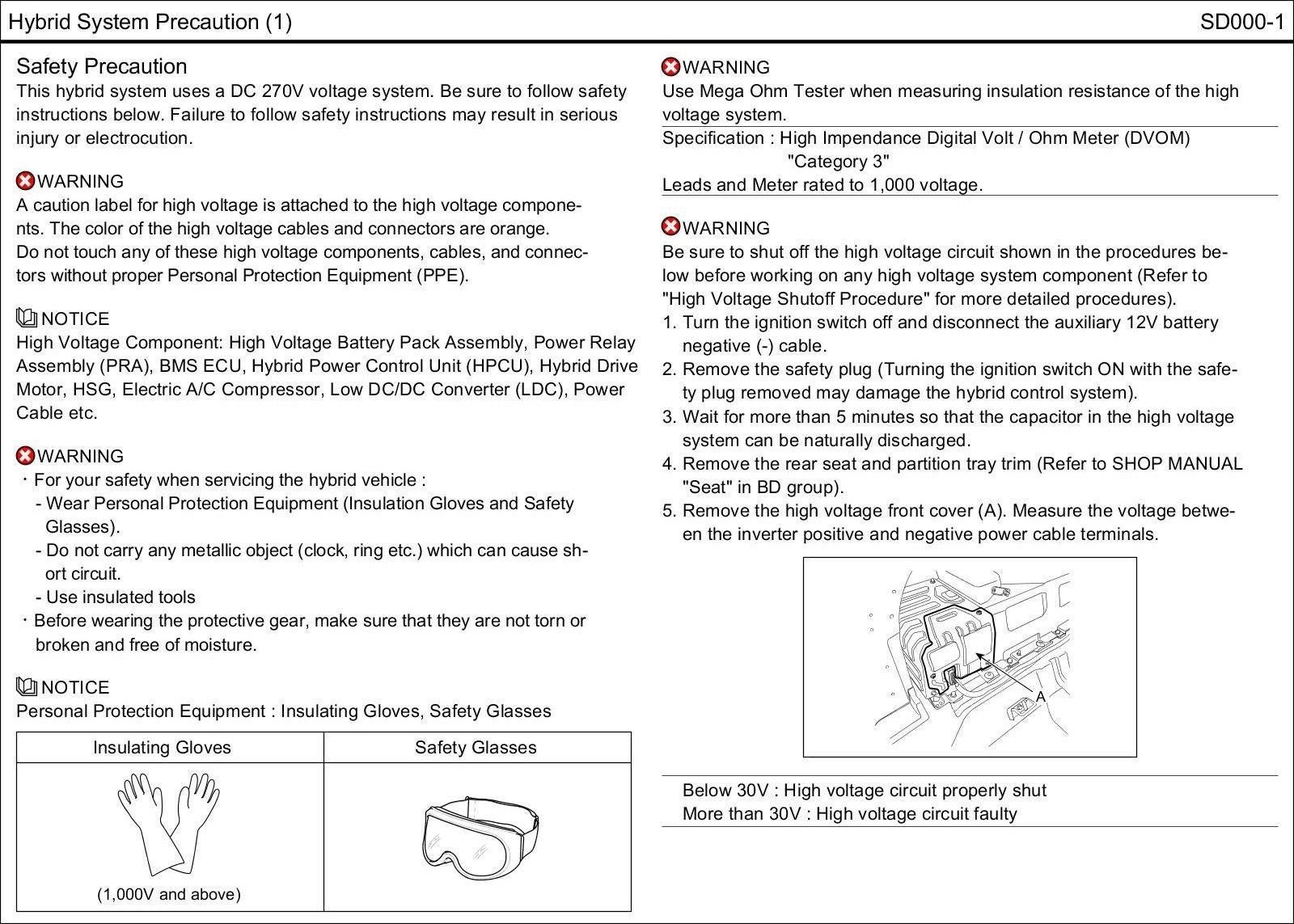

SD000-1 Hybrid System Precaution (1):




SD000-2 Hybrid System Precaution (2):

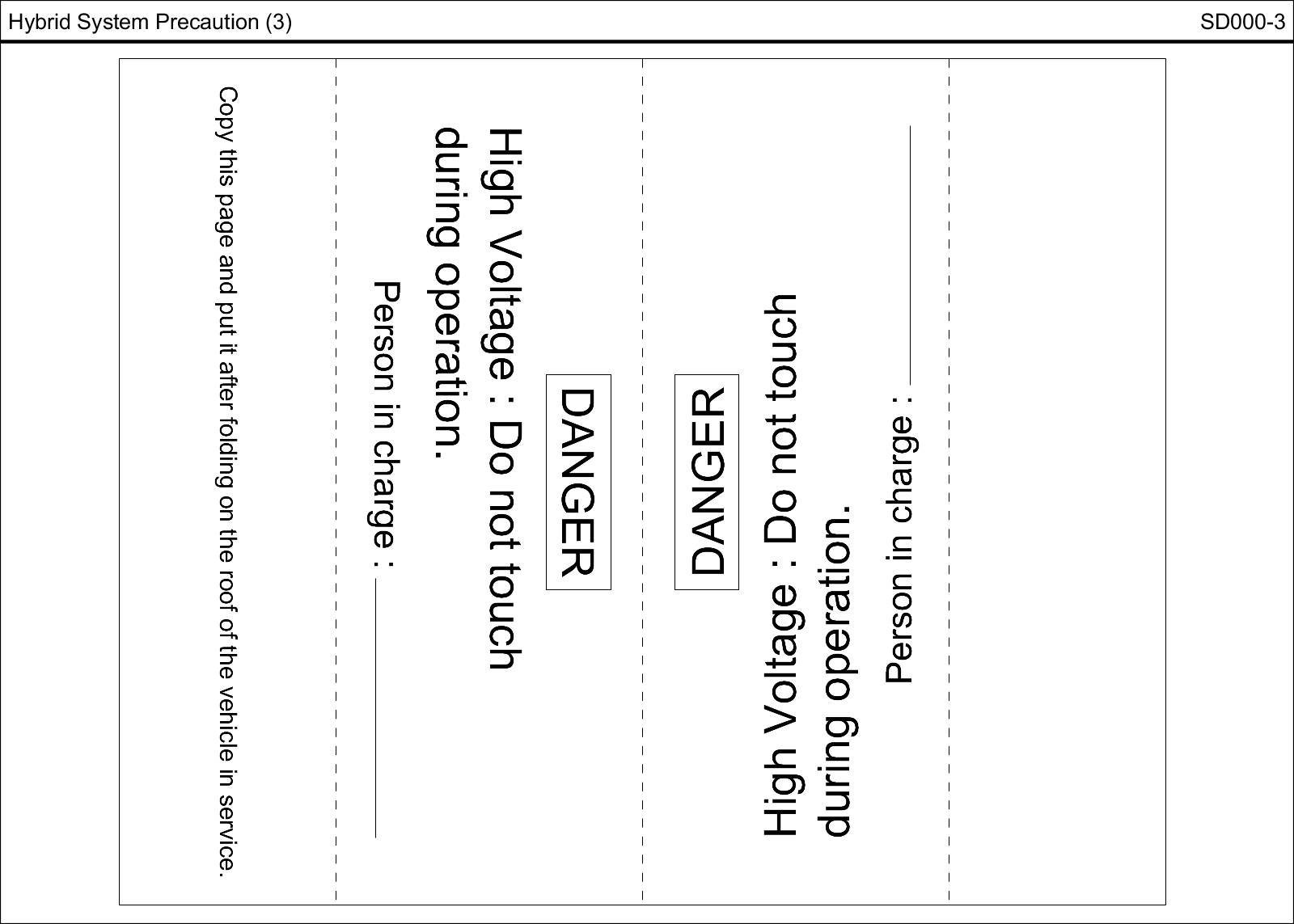

SD000-3 Hybrid System Precaution (3):

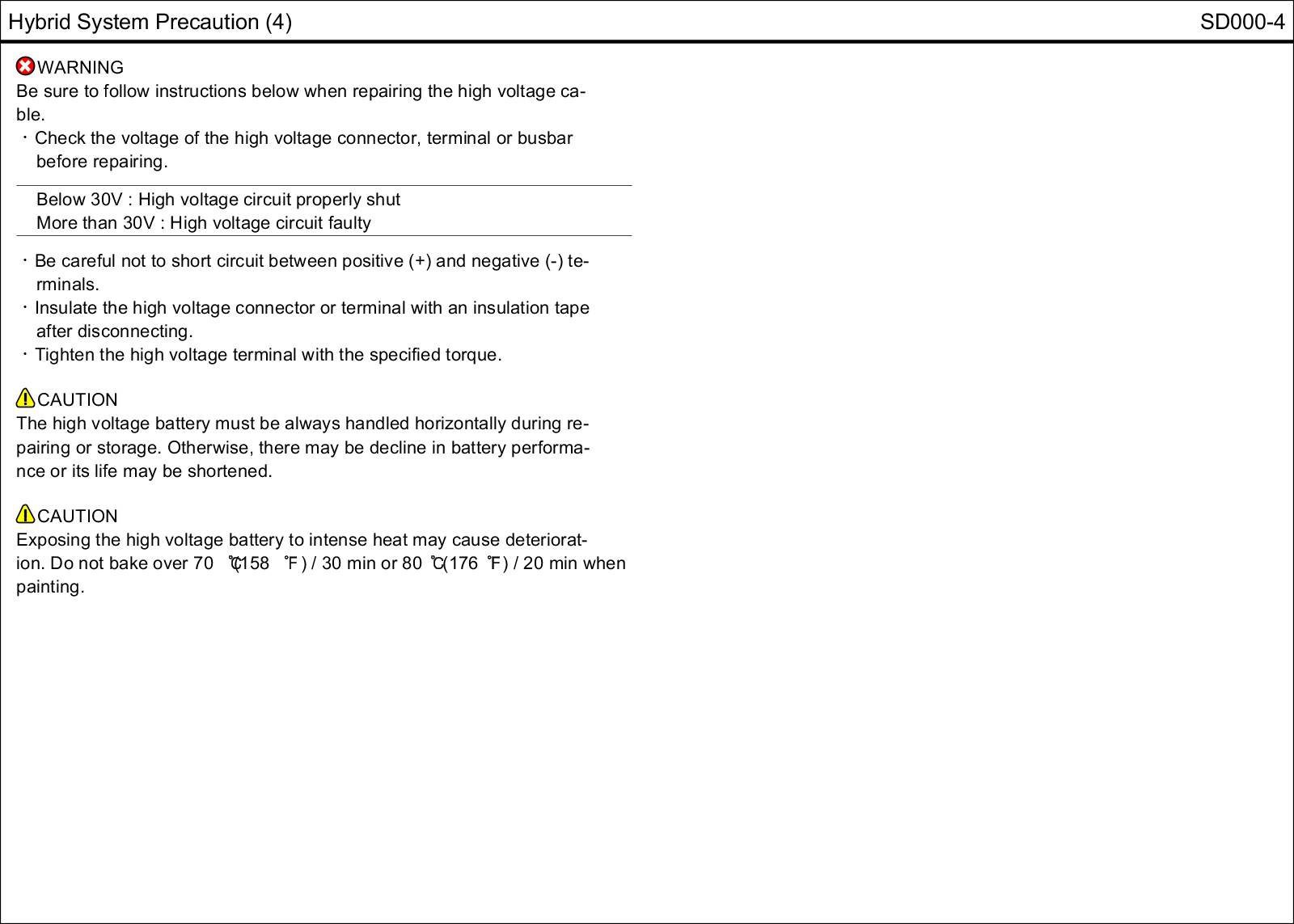

SD000-4 Hybrid System Precaution (4):

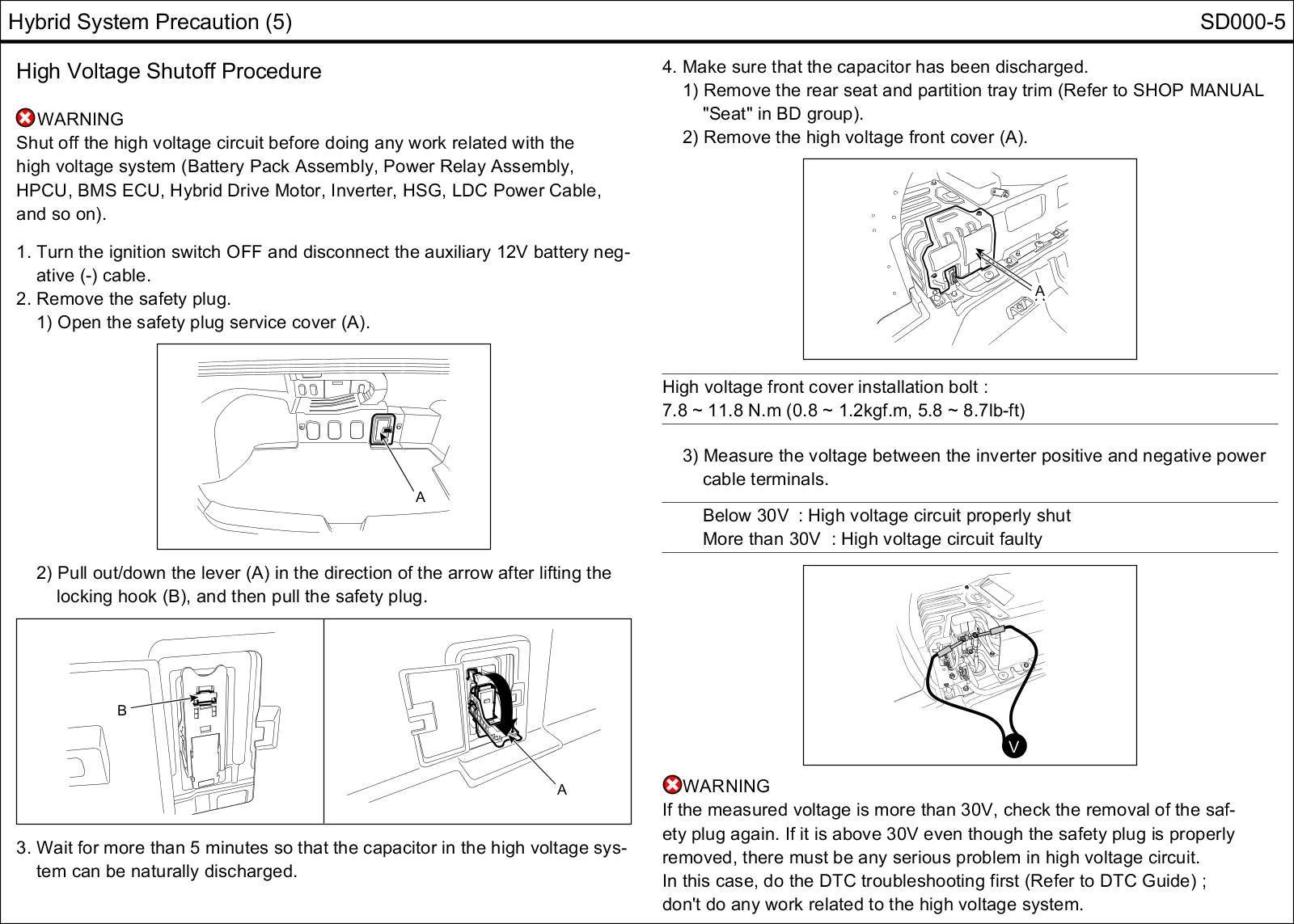

SD000-5 Hybrid System Precaution (5):
