Diagram Set SD366 (Hybrid Motor System)
Diagram Set SD366 (Hybrid Motor System)

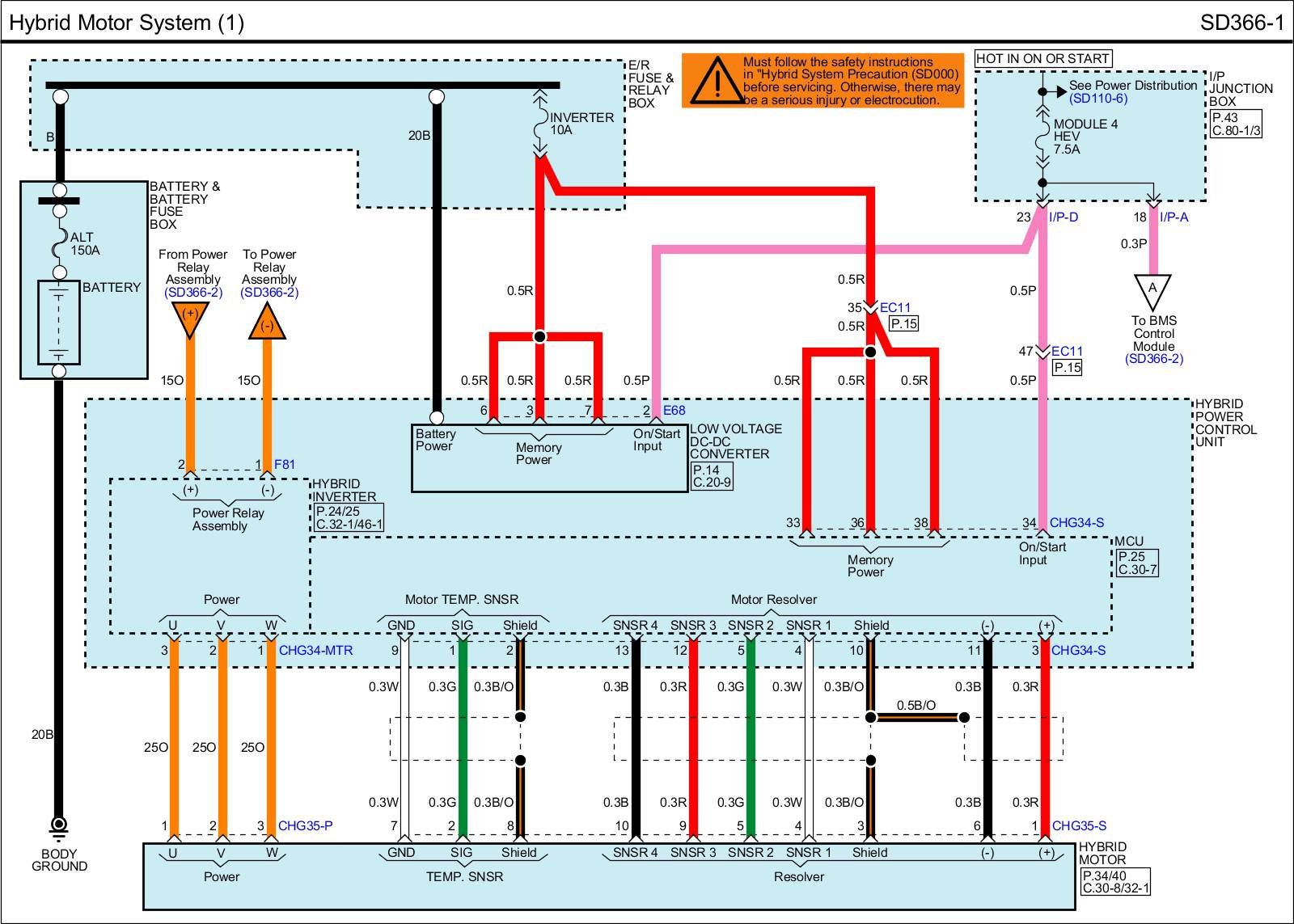

SD366-1 Hybrid Motor System (1):
SD366-2 Hybrid Motor System (2):

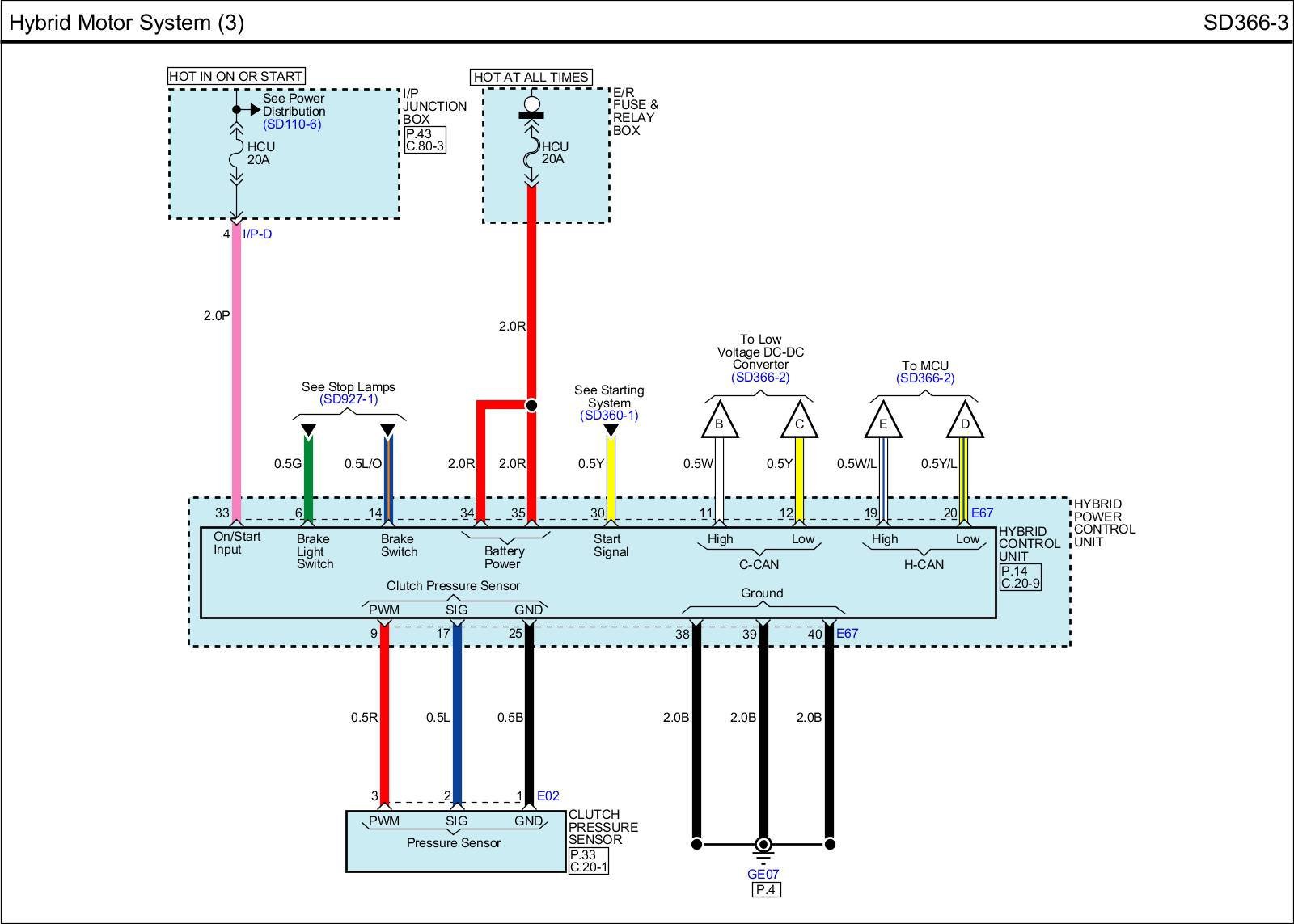

SD366-3 Hybrid Motor System (3):
