Home >> Kia >> 2012 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Fluid Pump, A/T >> Circui Diagram

Circui Diagram





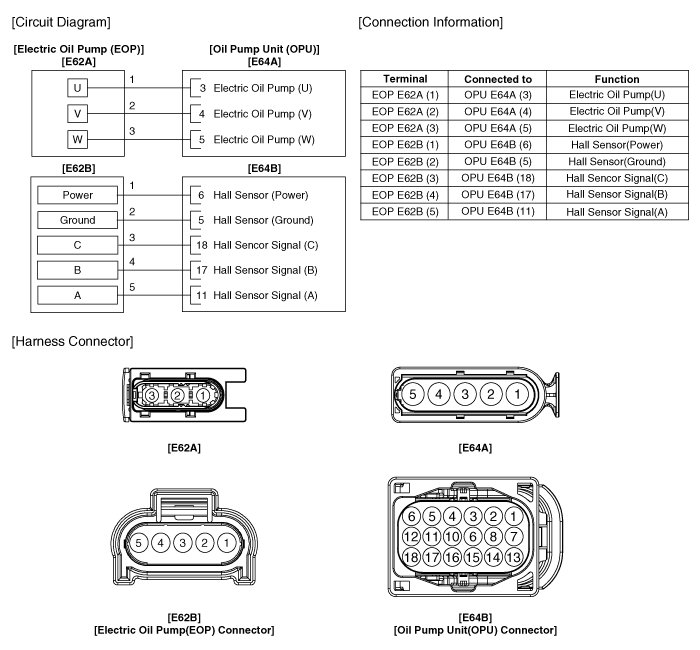

Circuit Diagram
