W/Harness Inspection

HEV Motor System
U1006 Lost Communication with Battery Energy Control Module \'A\' (H-CAN) - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection




1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,or damage.
3. Has a problem been found?






H-CAN communication circuit inspection

H-CAN communication line inspection
1. IG KEY OFF.
2. Disconnect MCU connector and BMS connector.

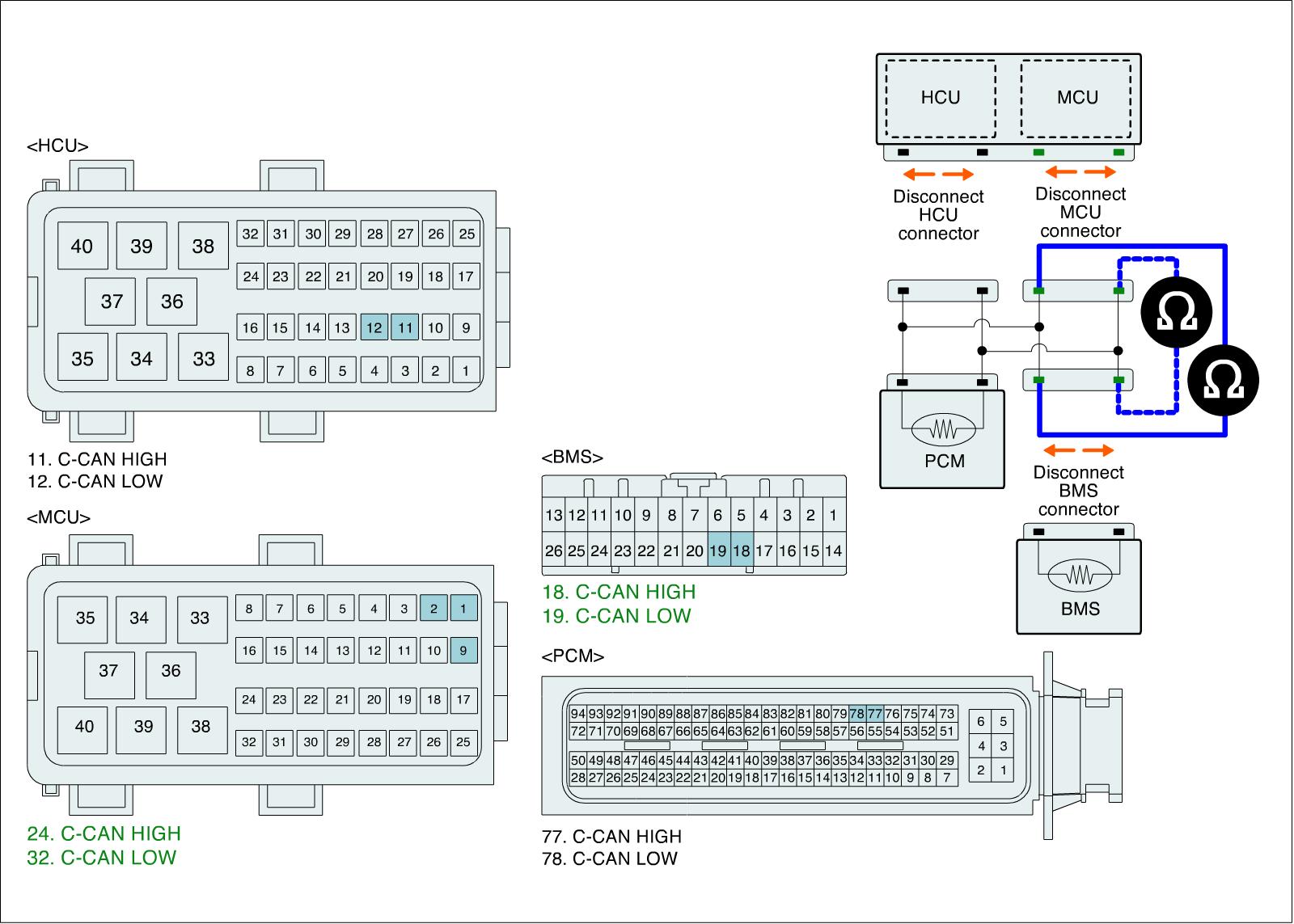

3. Measure the resistance between H-CAN-HIGH terminal of MCU harness connector and H-CAN-HIGH terminal of BMS harness connector.
4. Measure the resistance between H-CAN-LOW terminal of MCU harness connector and H-CAN-LOW terminal of BMS harness connector.

Specification :Below 1Ohms




5. Is the measured registance within specification ?
