Scantool Diagnostics

HEV Control System
U1001 High Speed CAN Communication Bus (H-CAN) - Scantool Diagnostics

Scantool Diagnostics

Check DTC
1. Check DTC with scantool.
2. Check that DTC related H-CAN communication is set between HCU and Each Module.
3. If there any DTC related Module, check the DTC first.
4. Erase the DTC after inspection and repair has done.

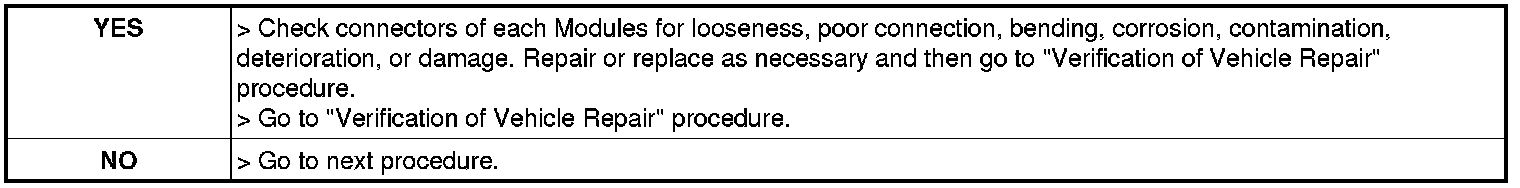

5. Is the DTC erased ?
