U0293 Lost Communication With Hybrid Powertrain Control Module (C-CAN) - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Engine "ON".
3. Monitor the "CAN Communication Service Data (Engine clutch status,Blue Drive SW)" parameters on the GDS.








Fig 1) Channel A : OPU Status, Channel B : HALL Signal (Normal situation)
Fig 2) Channel A : OPU Status, Channel B : HALL Signal (CAN Line Error)

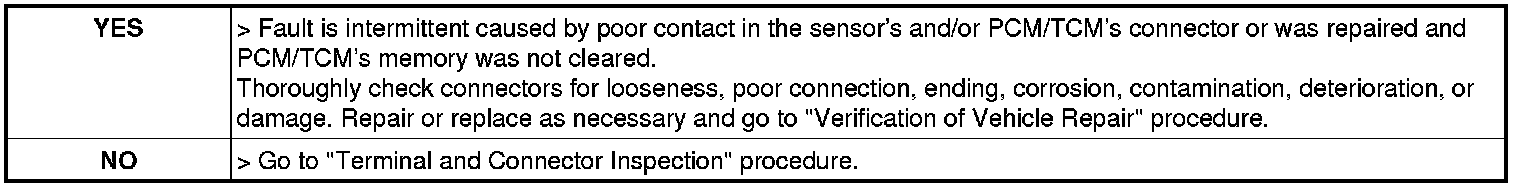

4. Is measured current data within specific?
