General Information

HEV Battery System
U0293 Lost Communication With Hybrid Powertrain Contral Module (C-CAN) - General Information

Component Location





General Description

The controllers are mounted on the vehicle communicates others by CAN(H-CAN, C-CAN) communication way to share information and control their logic. the C-CAN communication is connected with two wires phyiscally to send information.
In order to successfully perform CAN communication, BMS-ECU and PCM are equipped with an internal 120Ohms termination resistor. BMS ECU sets the DTC related to CAN Communication when the CAN communication does not fail by any cause.

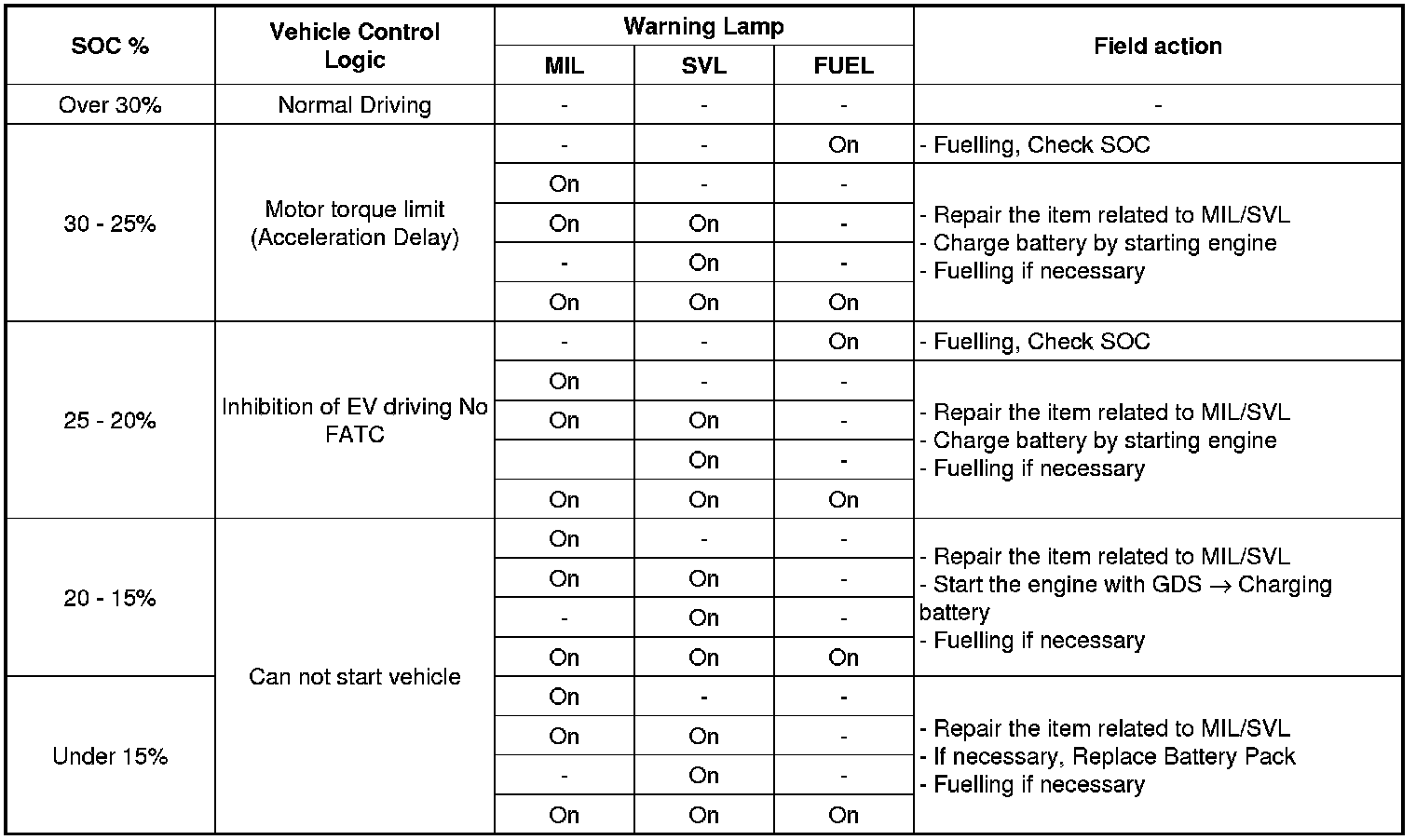

Field action when High Voltage Battery discharges






DTC Description

BMS ECU sets DTC U0293 when BMS ECU could not communicate with a HCU via C-CAN.Although it occurs, the service lamp is not turned on. If it is recovery to a normal state, the current DTC will delete after lasting 2 terms driving cylcle(IG ON /OFF), and thengenerate a historic DTC( H character is displayed at the end of the DTC code).

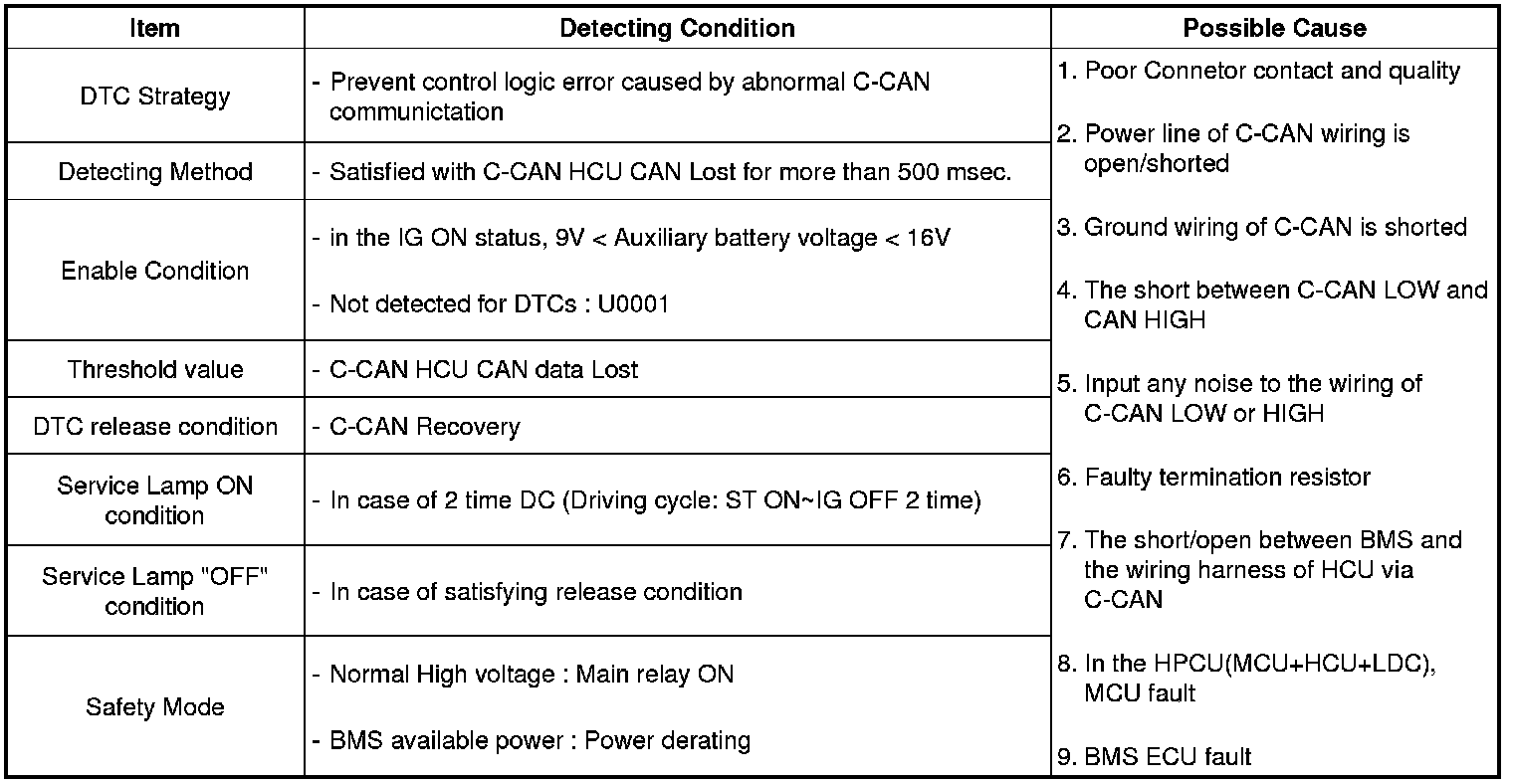

DTC Detecting Condition

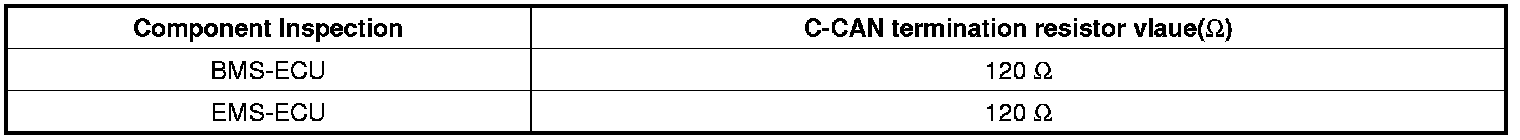

Specification





Diagnostic Circuit Diagram










Signal Waveform & Data








Fig.1) In the normal -HCU ECU and IG ON status, the communication waveform1 of C-CAN LOW & C-CAN HIGH
Fig.2) In the normal -MCU ECU and IG ON status, the communication waveform2 of C-CAN LOW & C-CAN HIGH
