General Information

Air Conditioner
U0293 Lost Communication With Hybrid Powertrain Control Module (C-CAN) - General Information

Component Location





General Description

The A/C Control Unit may control the E-compressor based on the informatioin from other control units. Almost all of the information are transmitted via CAN. Among them, HCU's are the most important in this vehicle system.

DTC Description

DTC U0293 will set if any signals from HCU have not been received through CAN line.

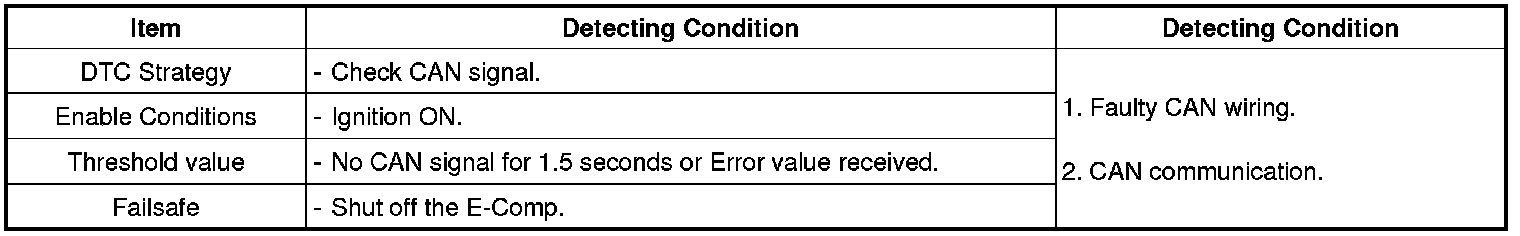

DTC Detecting Condition





Diagnostic Circuit Diagram
