W/Harness Inspection

Low DC/DC Converter
U0111 Lost Communication With Battery Energy Control Module \'A\' (C-CAN) - Inspection/Repair:_:W/Harness Inspection

W/Harness Inspection




1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

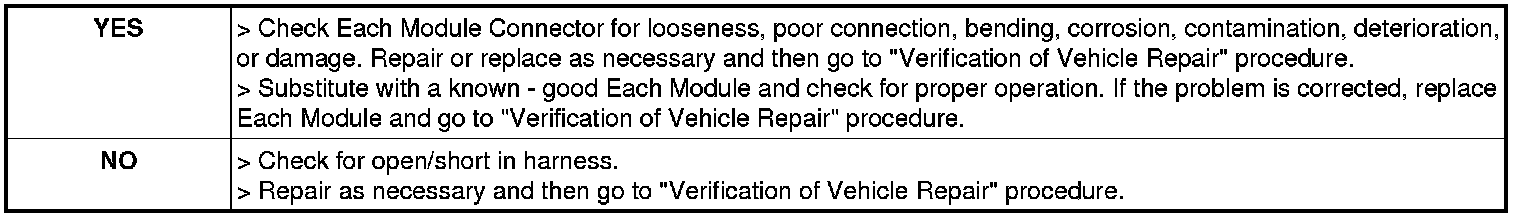

3. Has a problem been found?






CAN communication circuit inspection

CAN communication line inspection
1. IG KEY OFF.
2. Disconnect LDC connector and BMS connector.

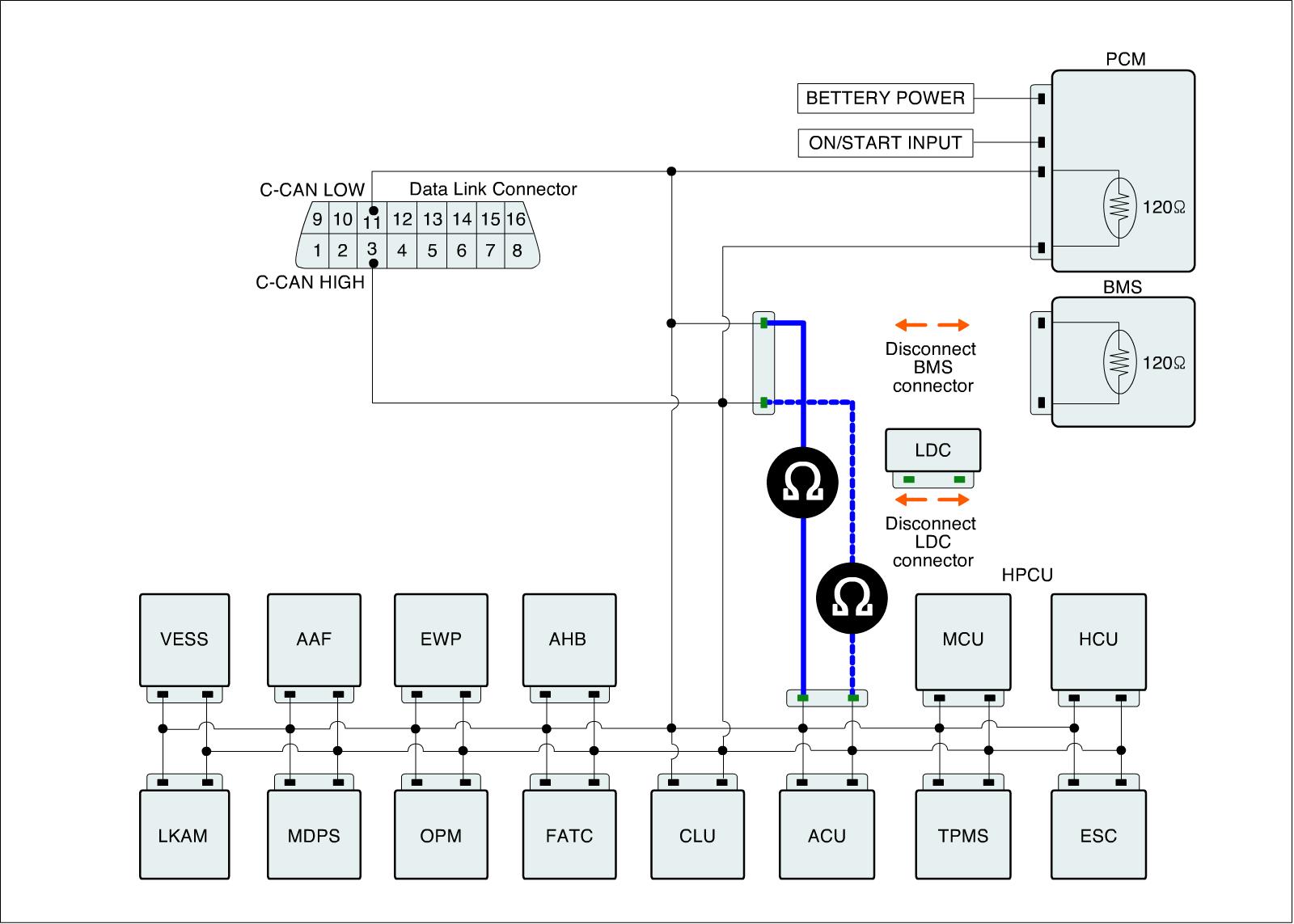

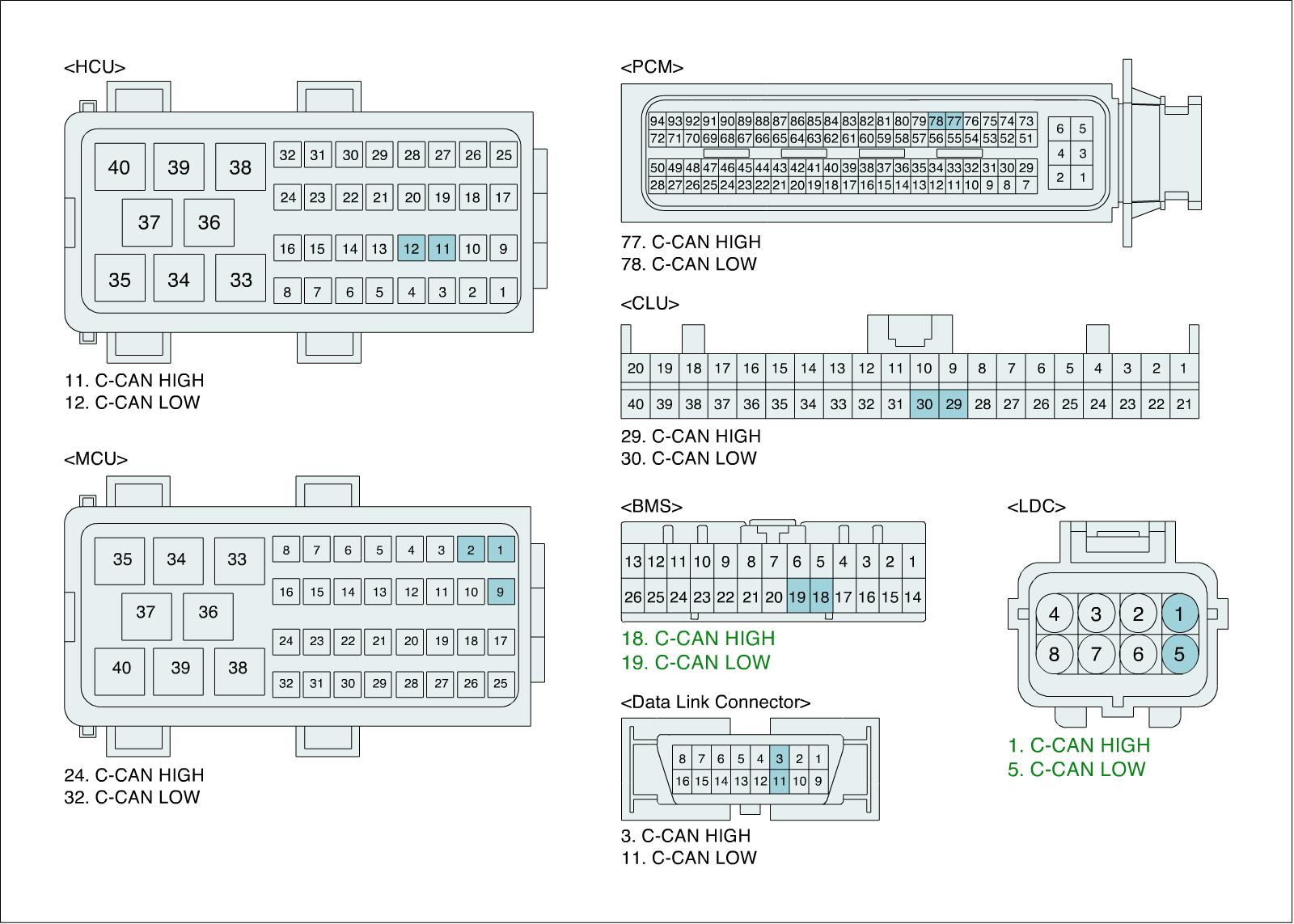

3. Measure the resistance between CAN-HIGH terminal of LDC harness connector and CAN-HIGH terminal of BMS harness connector.
4. Measure the resistance between CAN-LOW terminal of LDC harness connector and CAN-LOW terminal of BMS harness connector.

Specification :Below 1Ohms








5. Is the measured resistance within specification ?
