General Information

HEV Control System
U0111 Lost Communication With Battery Energy Control Module \'A\' (C-CAN) - General Information

Component Location





General Description

Several control units share responsibility for the Hybrid systems. These control units share information via CAN communication.

DTC Description

The HCU sets DTC U0111 if No message during 2s has not been received through the CAN signal.

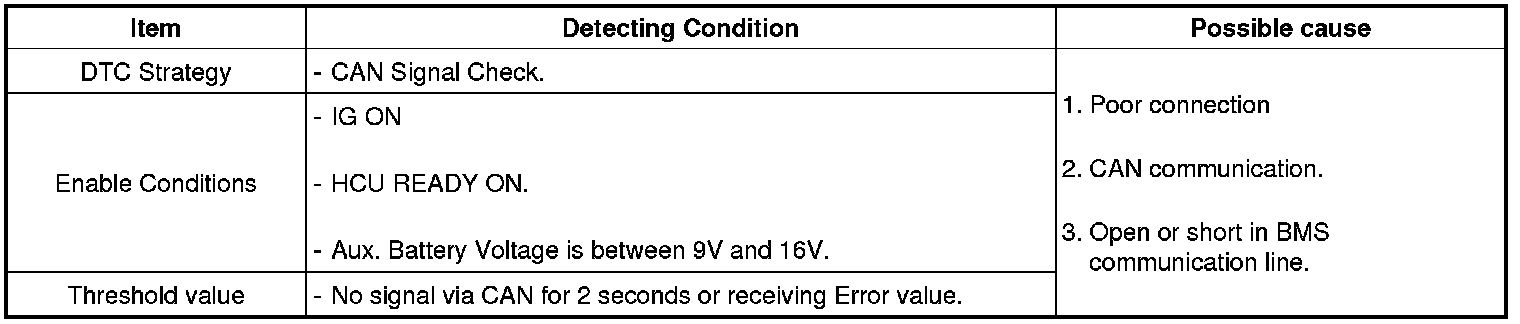

DTC Detecting Condition





Diagnostic Circuit Diagram










Signal Waveform & Data
