General Information

Air Conditioner
U0111 Lost Communication With Battery Energy Control Module \'A\' (C-CAN) - General Information

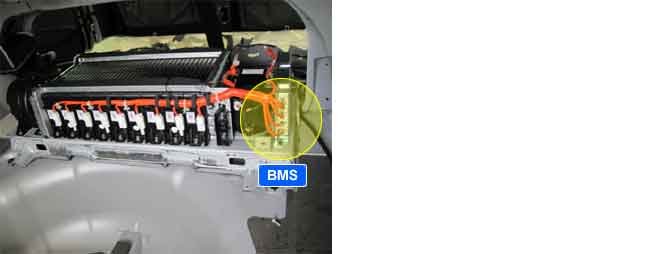

Component Location





General Description

The A/C Control Unit may control the E-compressor based on the informatioin from other control units. Almost all of the information are transmitted via CAN. Among them, BMS's are very important in this vehicle system.

DTC Description

DTC U0111 will set if any signals from BMS have not been received through CAN line.

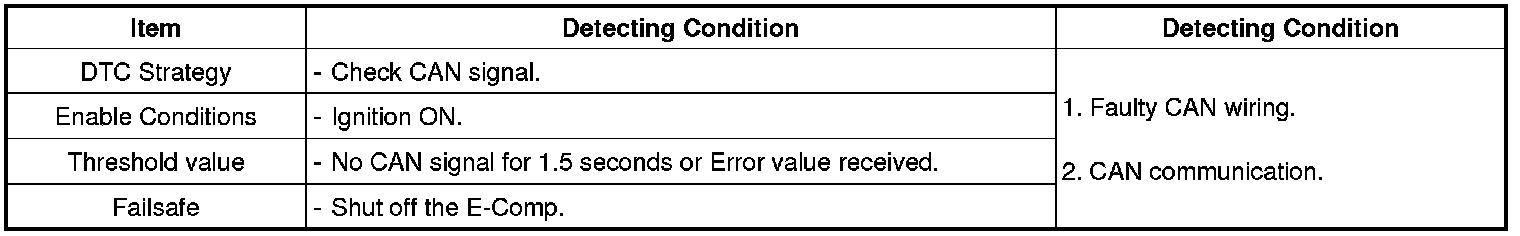

DTC Detecting Condition





Diagnostic Circuit Diagram
