U0110 Lost Communication with Drive Motor Control Module \'A\' (C-CAN) - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Engine "ON".
3. Monitor the "CAN Communication Service Data " parameters on the GDS.








Fig 1) Channel A : OPU Status, Channel B : HALL Signal (Normal situation)
Fig 2) Channel A : OPU Status, Channel B : HALL Signal (CAN Line Error)

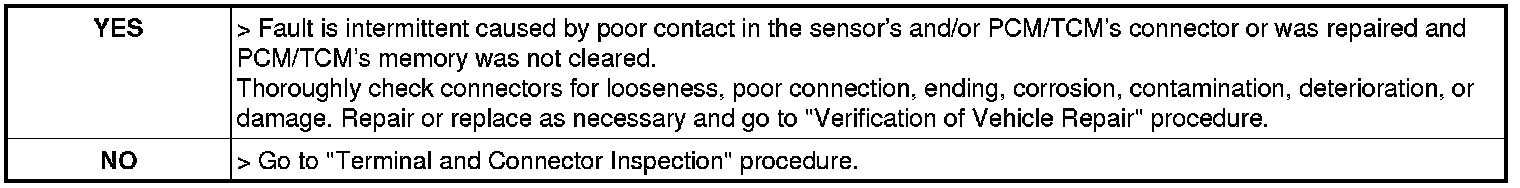

4. Is measured current data within specific?
