General Information

Air Conditioner
U0110 Lost Communication with Drive Motor Control Module \'A\' (C-CAN) - General Information

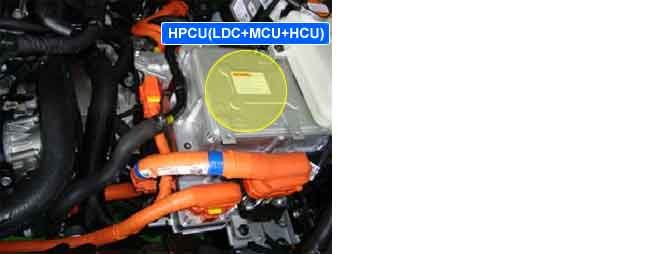

Component Location





General Description

The A/C Control Unit may control the E-compressor based on the informatioin from other control units. Almost all of the information are transmitted via CAN.

DTC Description

DTC U0110 will set if any signals from MCU have not been received through CAN line.

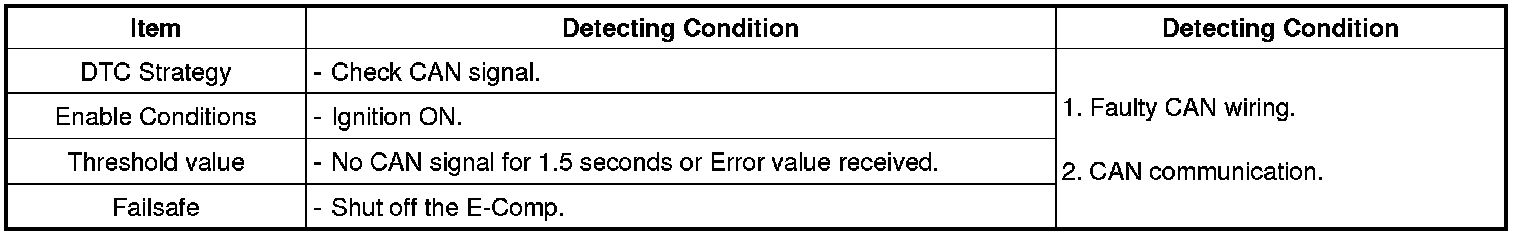

DTC Detecting Condition





Diagnostic Circuit Diagram
