Active Air Flap
U0110 Lost Communication with Drive Motor Control Module \'A\' (C-CAN) - General Information

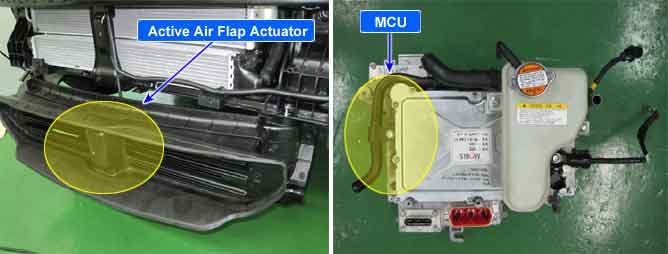

Component Location





Gerneral Description

AAF(Active Air Flap) have High and Low line in the CAN communication which receives each vehicle condition from EMS, FATC, TCU, MCU and LDC. With this informations, AAF controls Motor properly.

DTC Description

AAF sets DTC U0110 when AAF detects that there is no signal from MCU.

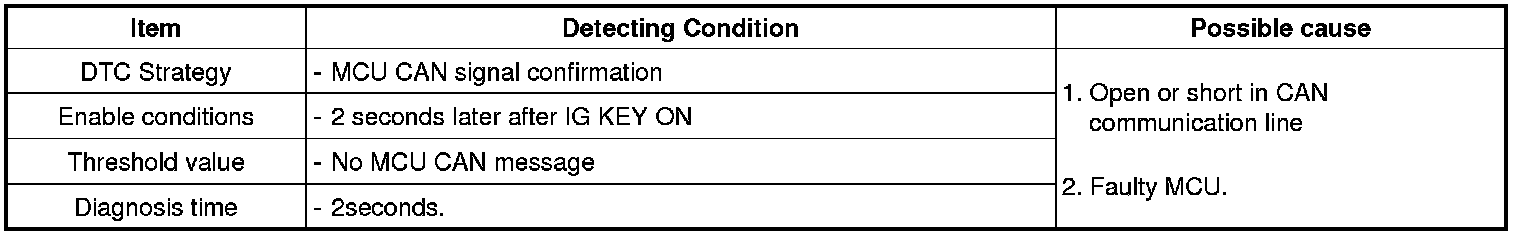

DTC Detecting Condition





Diagnostic Diagram










CAN Signal : high & low
